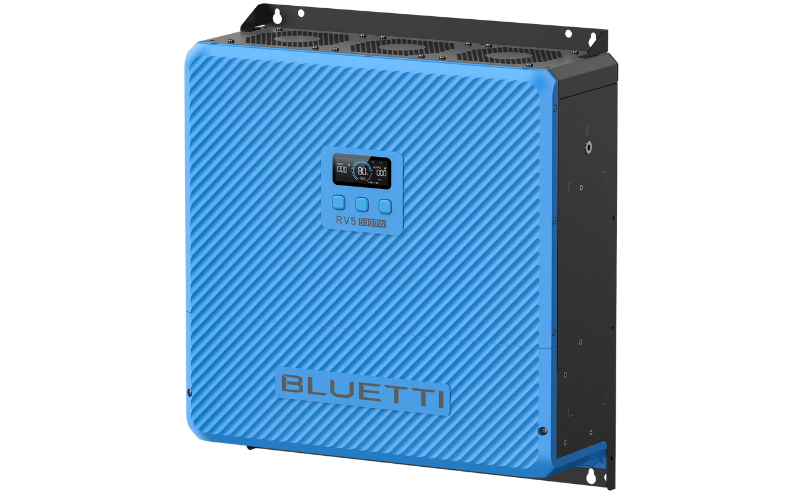

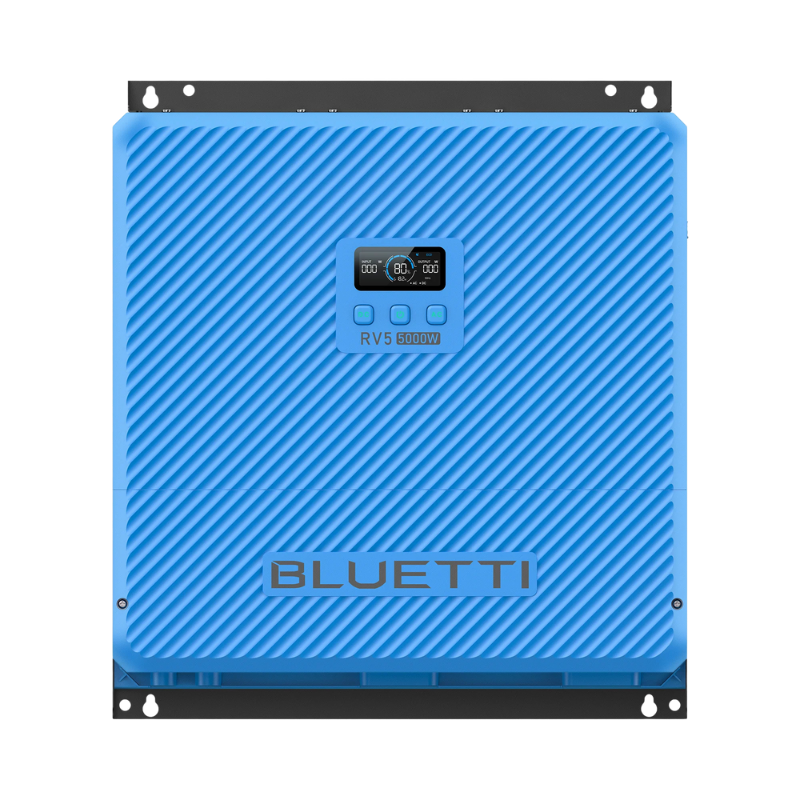

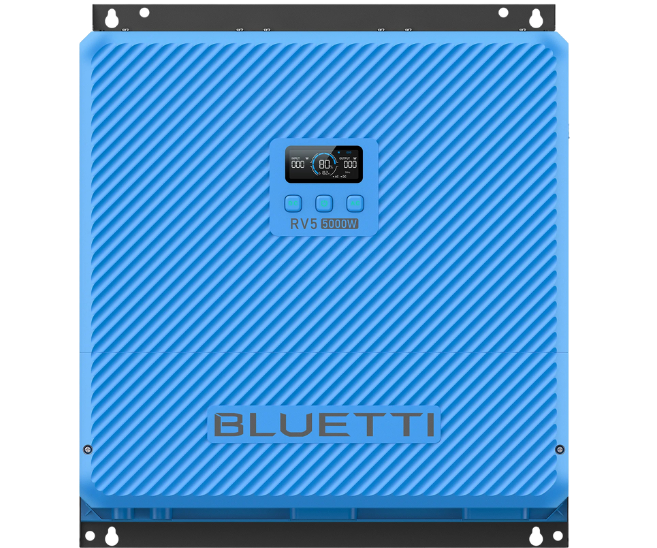

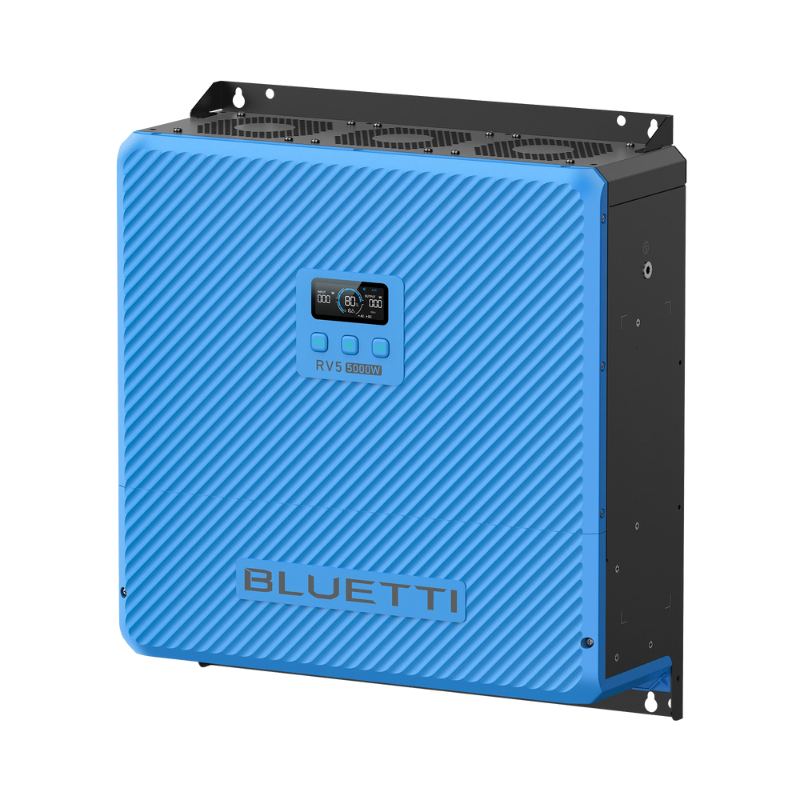

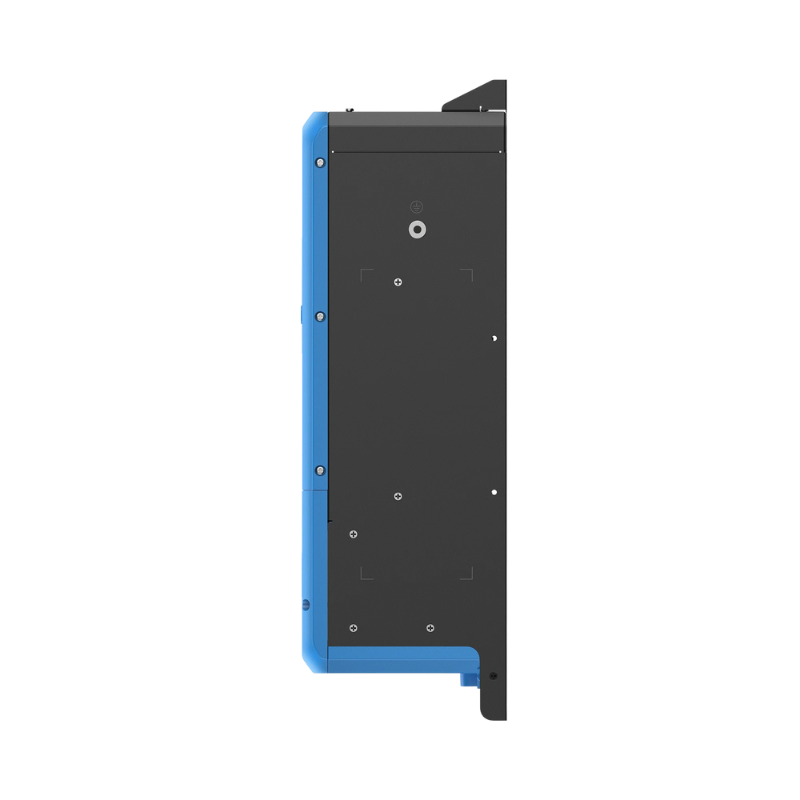

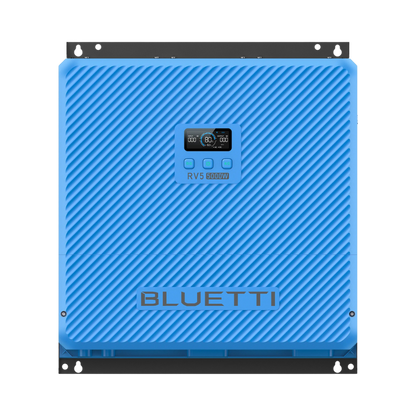

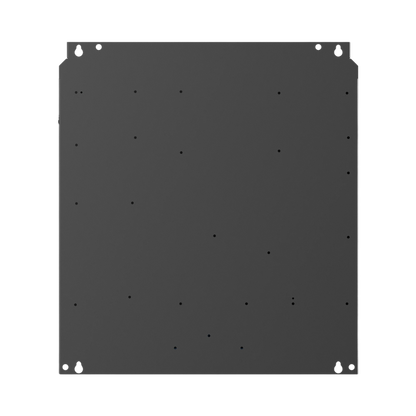

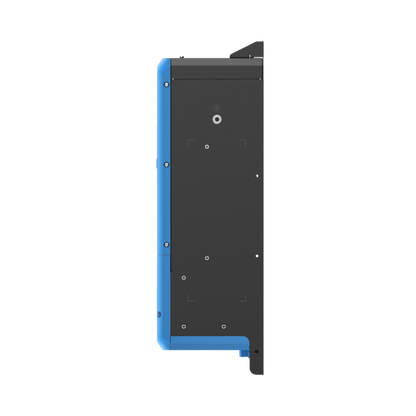

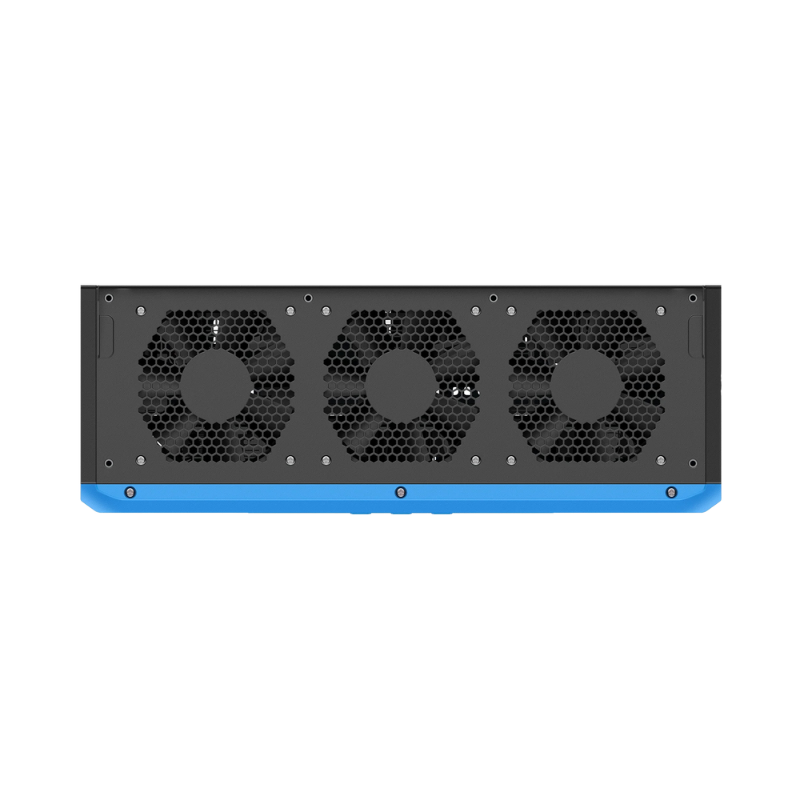

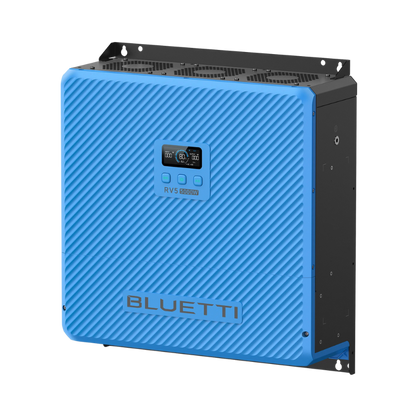

BLUETTI RV5 Power Hub
The BLUETTI RV5 Power Hub is an all-in-one power management solution designed specifically for RV solar and off-grid mobile energy systems. Built to simplify solar integration, battery charging, and onboard power distribution, the RV5 provides a centralized hub for efficient, reliable energy control while traveling or living off-grid. With support for solar input, battery storage, and RV-ready power output, it’s an ideal upgrade for users seeking a clean, organized, and dependable RV power setup.
BLUETTI RV5 Power Hub Features
All-in-One RV Power Management – Combines solar charging, battery control, and power distribution into one streamlined hub.
Optimized for RV Solar Systems – Designed specifically for mobile solar setups, making it easier to build or upgrade an RV energy system.
Centralized Power Control – Manages multiple power inputs and outputs for clean, organized system operation.
Supports Off-Grid Living – Ideal for extended travel and remote power needs, delivering dependable energy anywhere.
Efficient Charging & Energy Flow – Improves charging performance and system efficiency, reducing downtime between recharges.
Installer-Friendly Design – Simplifies wiring and integration, making RV solar installations cleaner and easier to maintain.
BLUETTI RV5 Power Hub Applications

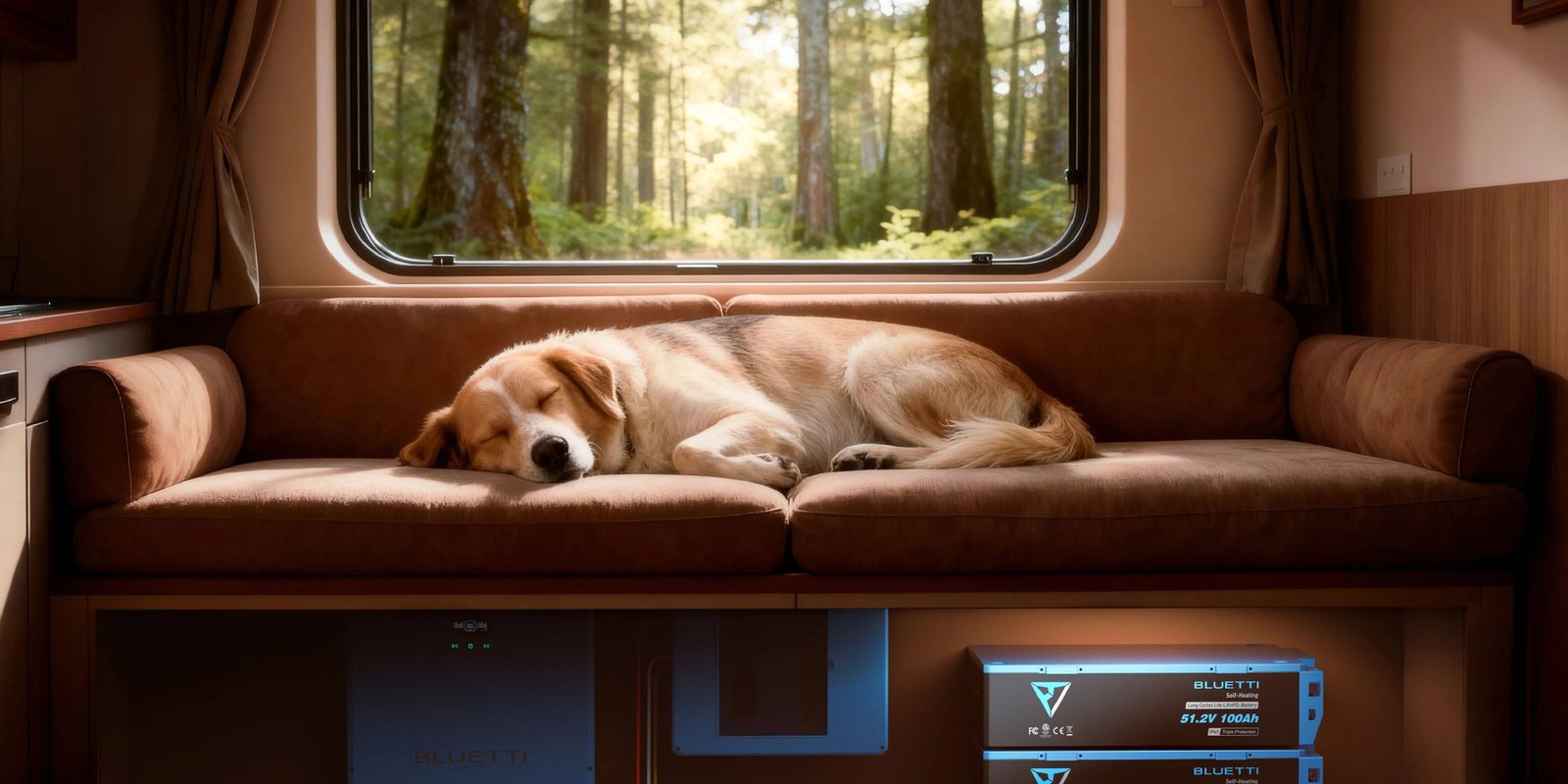

• RV Solar Power Systems – Central hub for solar charging and onboard power
• Van Life & Mobile Living – Reliable off-grid energy management on the road
• Off-Grid Travel – Power essential devices while camping or boondocking
• System Upgrades – Simplified replacement for complex RV wiring setups
• Backup Power Integration – Support battery storage and mobile energy resilience
What’s Included
Everything you need is included with your product.
- 1 x RV5 Power Hub
- 8 x M8 Wood Screw
- 8 x Anchor
- 1 x Drilling Template
- User Manual
BLUETTI EP500 Solar Power Station Specifications
AC Input
| Specifications | Details |
| Rated Input Voltage | Standard AC Input (N/L1/G) – 120 V | EV Input (L1/L2/G) – 208V |
| Charging Power | 5,000W Max. (limited by the battery terminal’s maximum current) |
| UPS | Switchover time ≤20ms |
AC Output
| Specifications | Details |
| Rated Output Voltage | 120V |
| Rated Output Power | 5,000W |
| Rated Output Current | 42A |
Solar Charging(PV1/PV2)
| Specifications | Details |
| Max. Input Power | 1,800W |
| Max. Input Current | 50A |
| Input Voltage | 12V to 50V |
Vehicle Charging(PV2)
| Specifications | Details |
| Max. Input Power | 600W (12V) / 1,200W (24V) |
| Max. Input Current | 50A |
| Input Voltage | 12V to 14.4V (12V battery) | 24V to 28.8V (24V battery) |
DC Output
| Specifications | Details |
| Rated Output Voltage | 12V/24V |
| Rated Output Power | 1,360W (12V) | 1,620W (24V) |
| AC+DC Input Power | 6,000W Max. |
| Rated Output Current | 100A (12V) | 60A (24V) |
| Total Load Power | 6,000W Max. (varies based on battery type and quantity) |
General
| Specifications | Details |
| Weight Approx. | 30.86lbs (14kg) |
| Operating Temperature | -4°F to 131°F (-20°C to 55°C) |
| Operating Humidity | 95% Max. |
| Dimensions | 17.72 × 19.69 × 6.30in (450 × 500 × 159.9mm) |
| Storage Temperature | -4°F to 104°F (-20°C to 70°C) |
| Certification | UL458 |
| Warranty | 5Y |
Frequently-Asked Questions
What is the RV5 Power Hub used for?
The RV5 Power Hub is designed to manage solar input, battery charging, and power distribution in RV and mobile off-grid energy systems.
Is this product only for RVs?
It is optimized for RV use, but it may also work in other mobile or compact off-grid solar setups depending on system requirements.
Does the RV5 simplify RV solar installation?
Yes. It helps centralize wiring and power control, making installations cleaner, safer, and easier to manage.
Is professional installation recommended?
Yes. Professional installation is recommended for permanent RV electrical integration.
