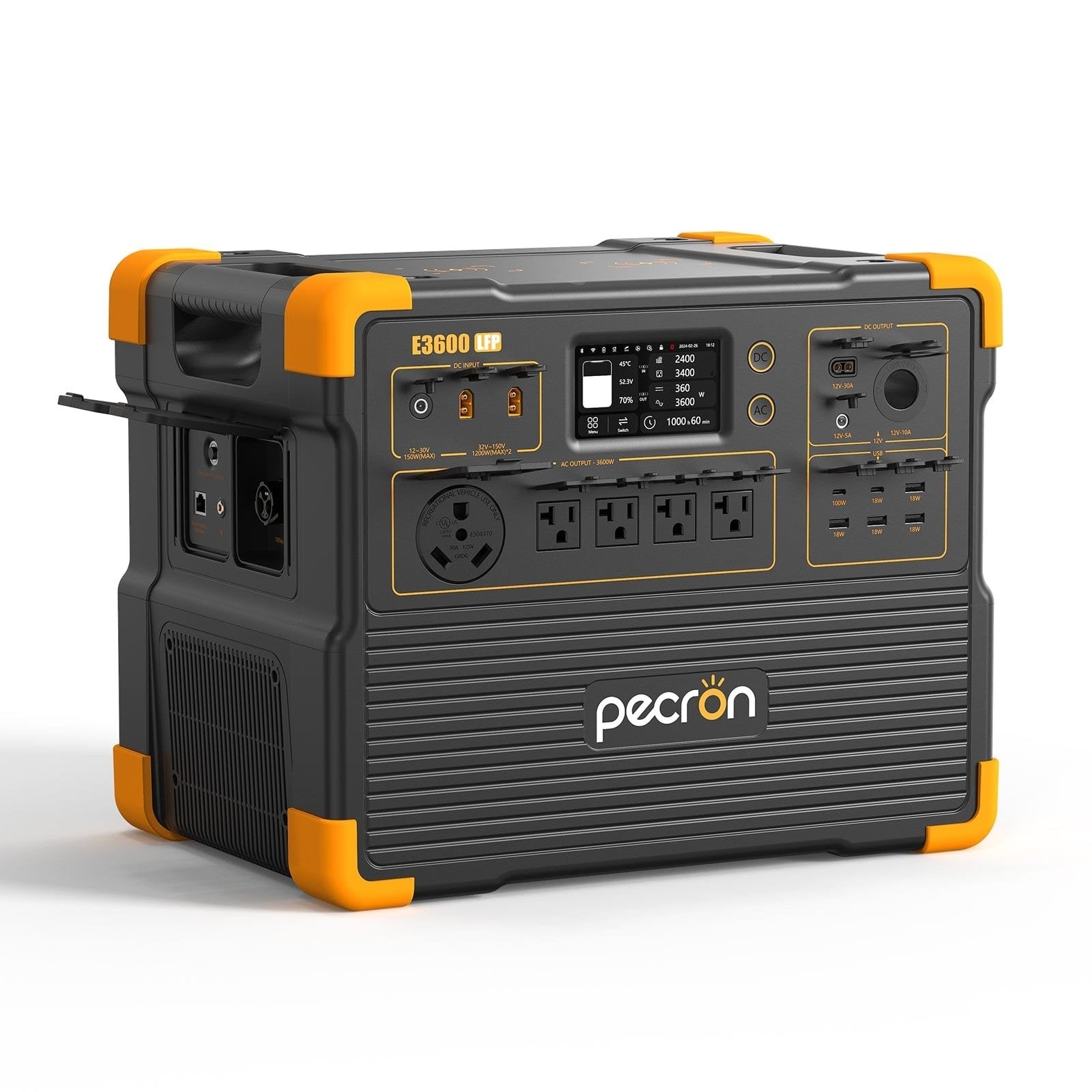

PECRON E3600LFP Portable Power Station 3600W 3072Wh

PECRON E3600LFP Portable Power Station – 3600W 3072Wh

High-Capacity, Ultra-Fast Charging, and Expandable Power Solution

The PECRON E3600LFP is a powerful, high-capacity portable power station designed for off-grid energy needs, emergency backup, and professional applications. Featuring a 3600W bidirectional pure sine wave inverter (7000W surge) and a 3072Wh LiFePO4 battery, this unit provides reliable, long-lasting power for heavy-duty appliances, RVs, and home backup systems.

With super-fast AC charging (1.3 hours full charge at 3200W) and expandable storage up to 15,360Wh, the E3600LFP is a top-tier energy solution for users who need scalability, efficiency, and smart connectivity.

---

Key Features

Powerful & Expandable Energy System

• 3600W pure sine wave AC inverter (7000W surge) ensures stable, high-performance power.

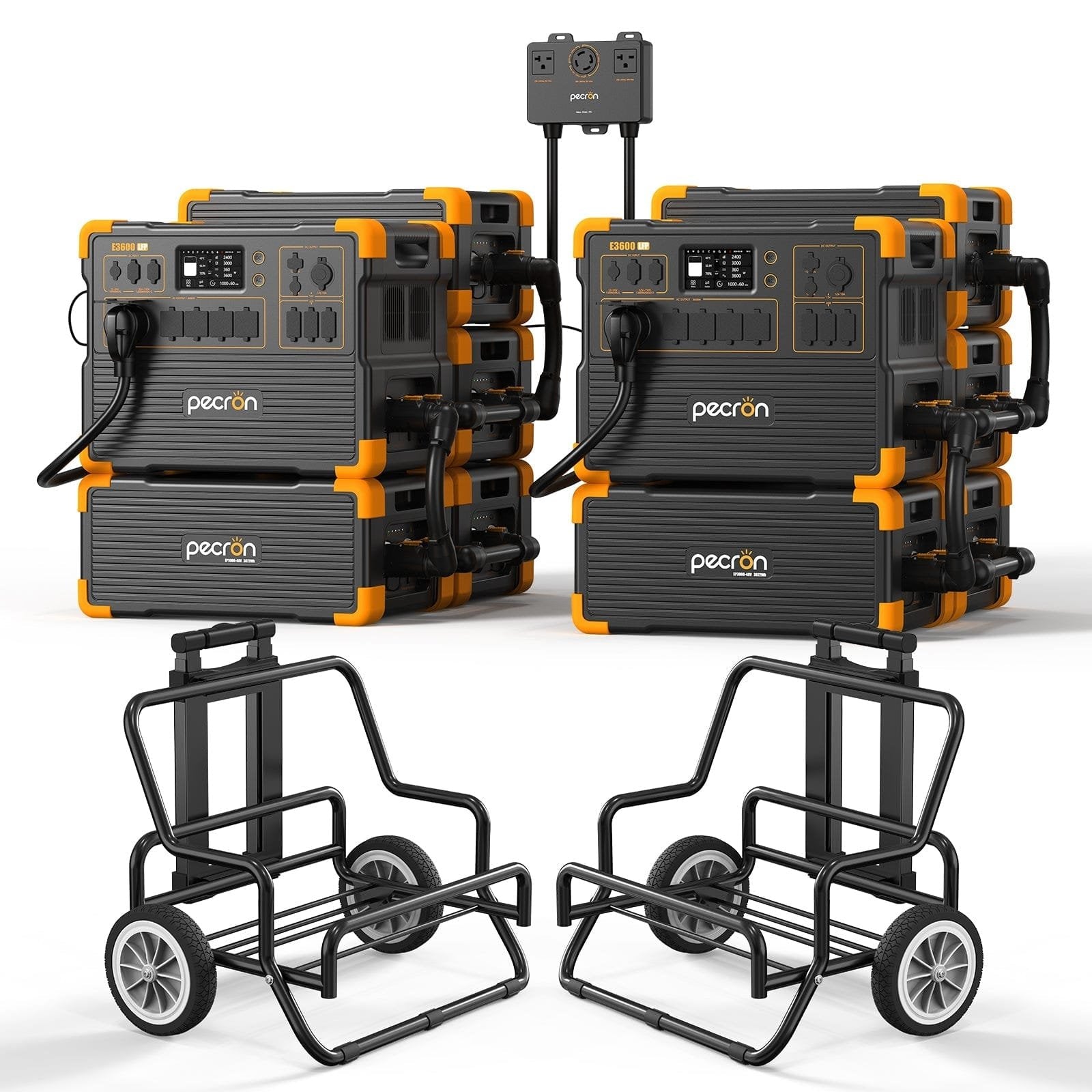

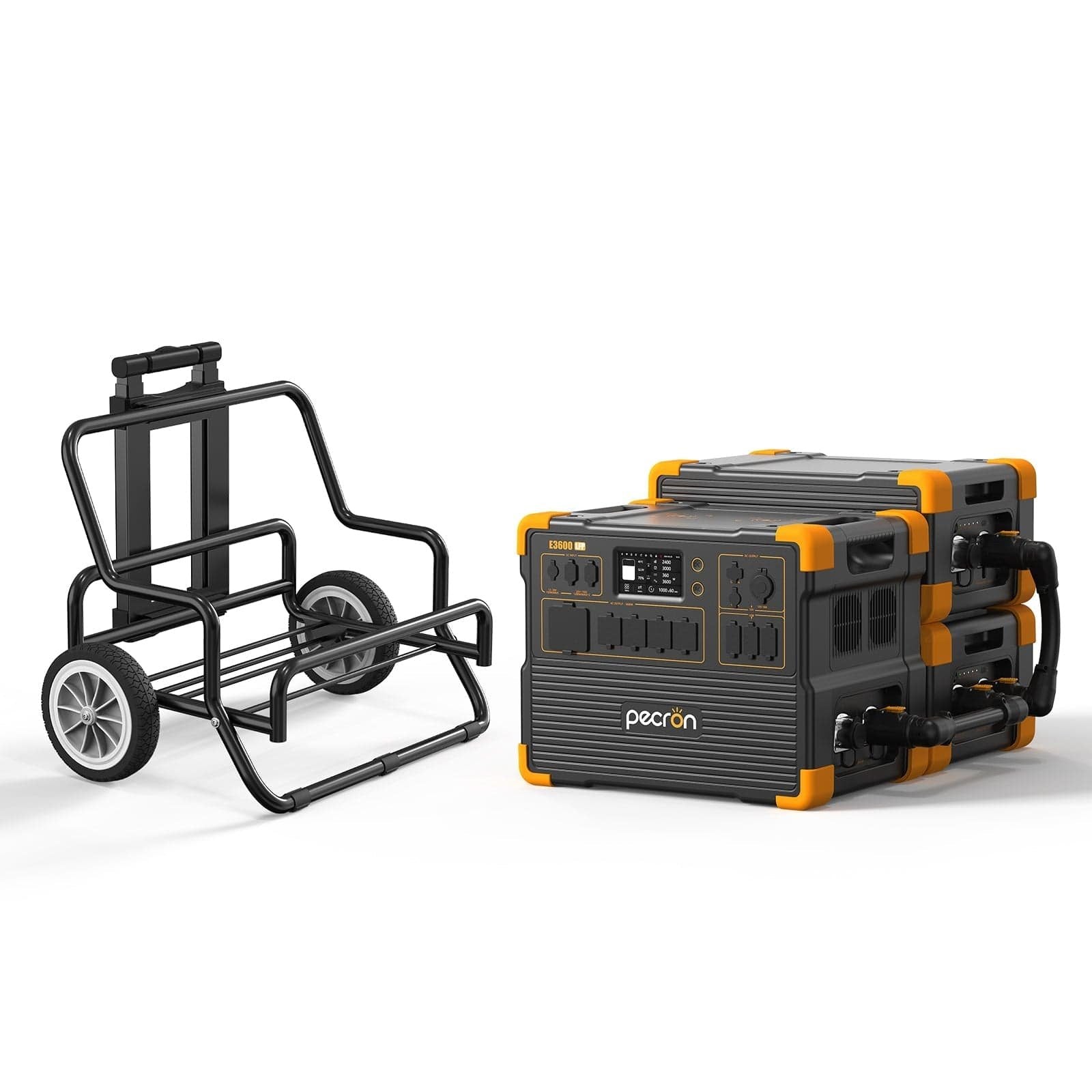

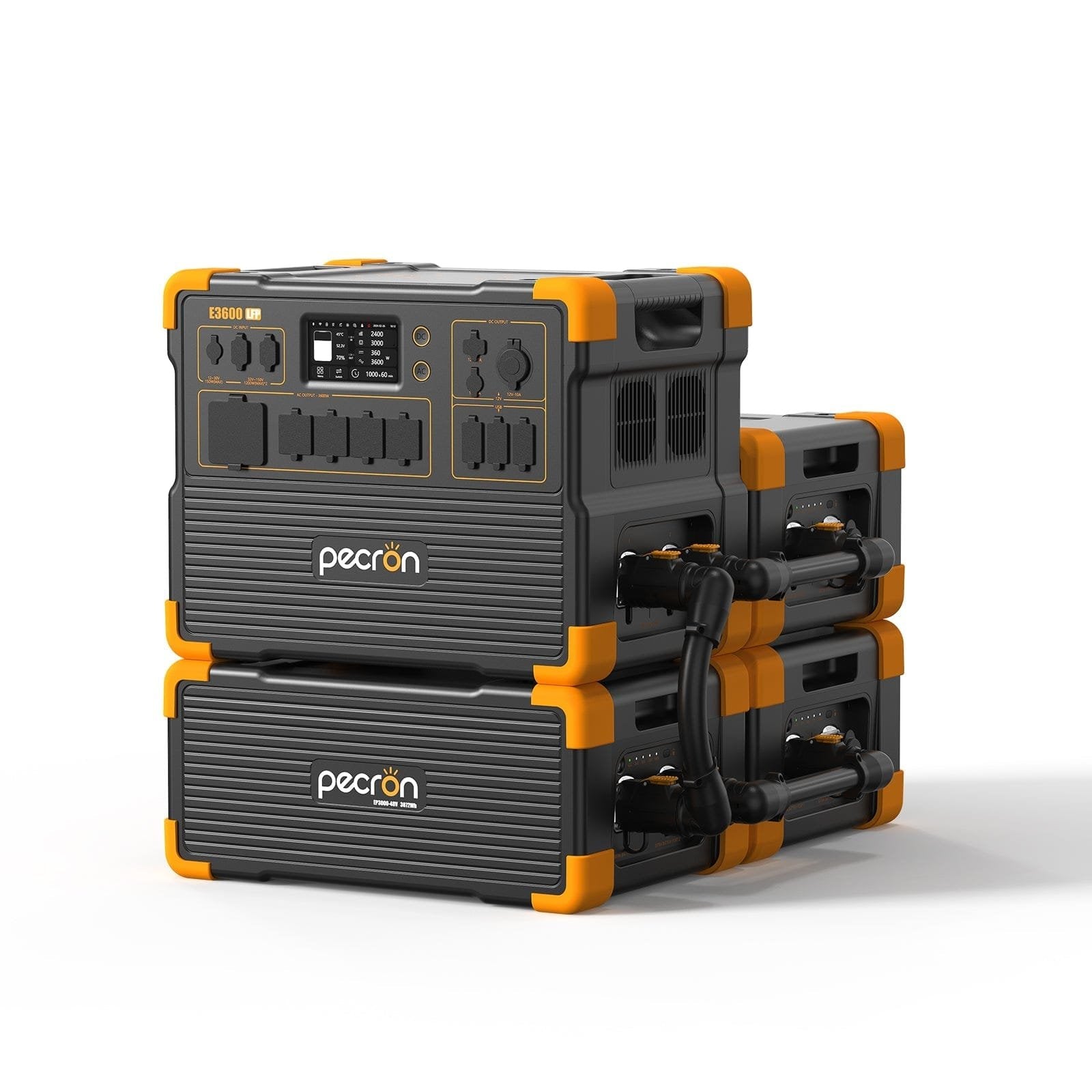

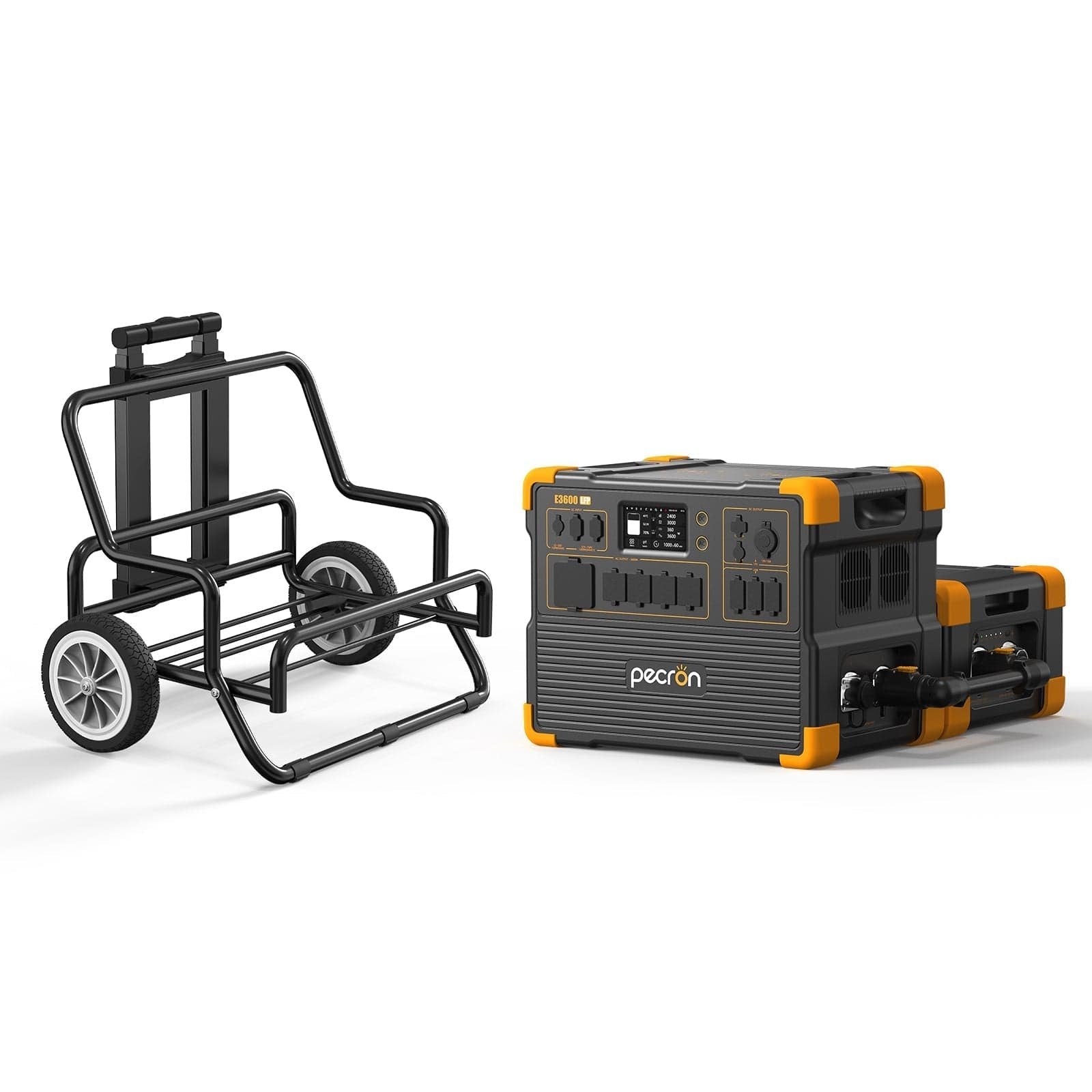

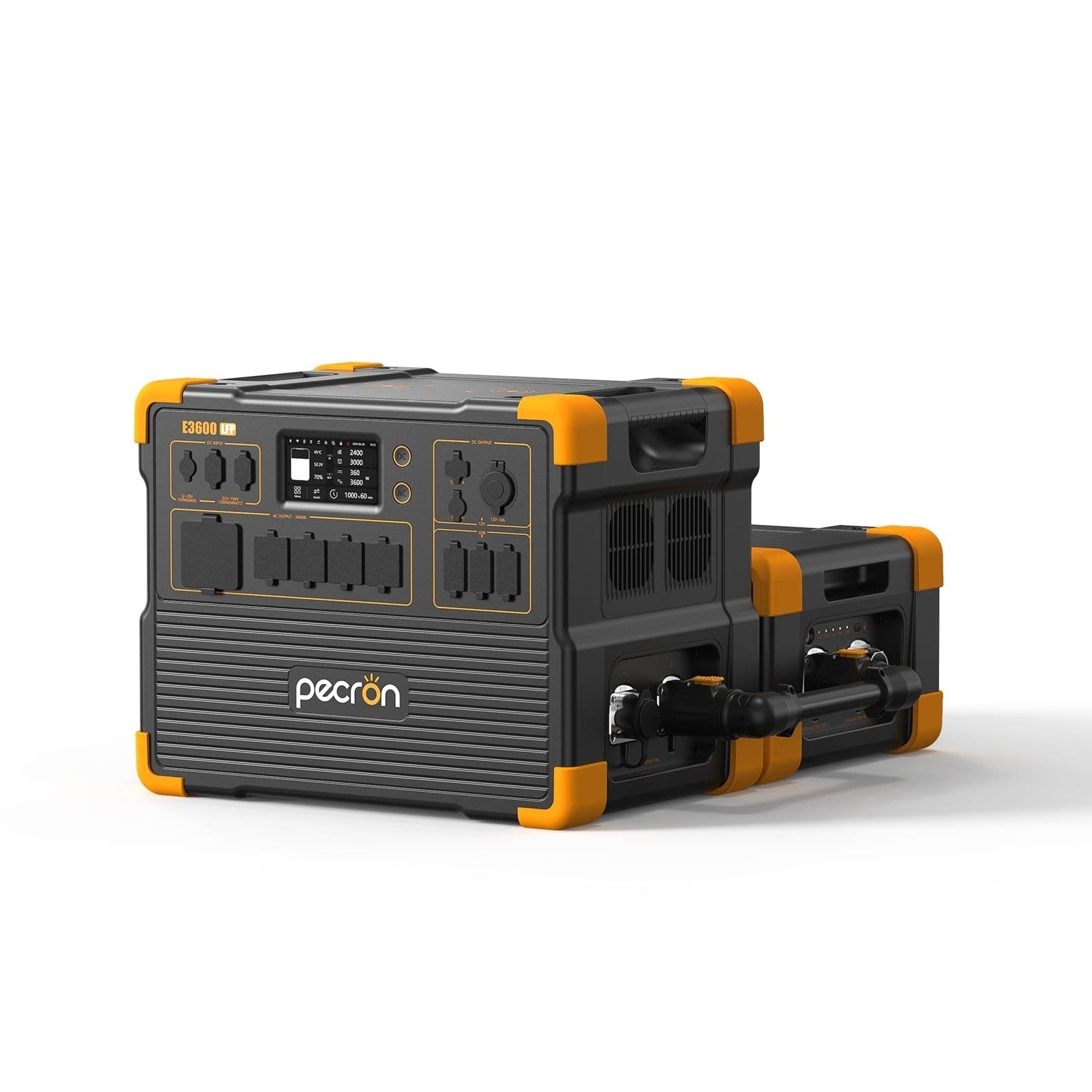

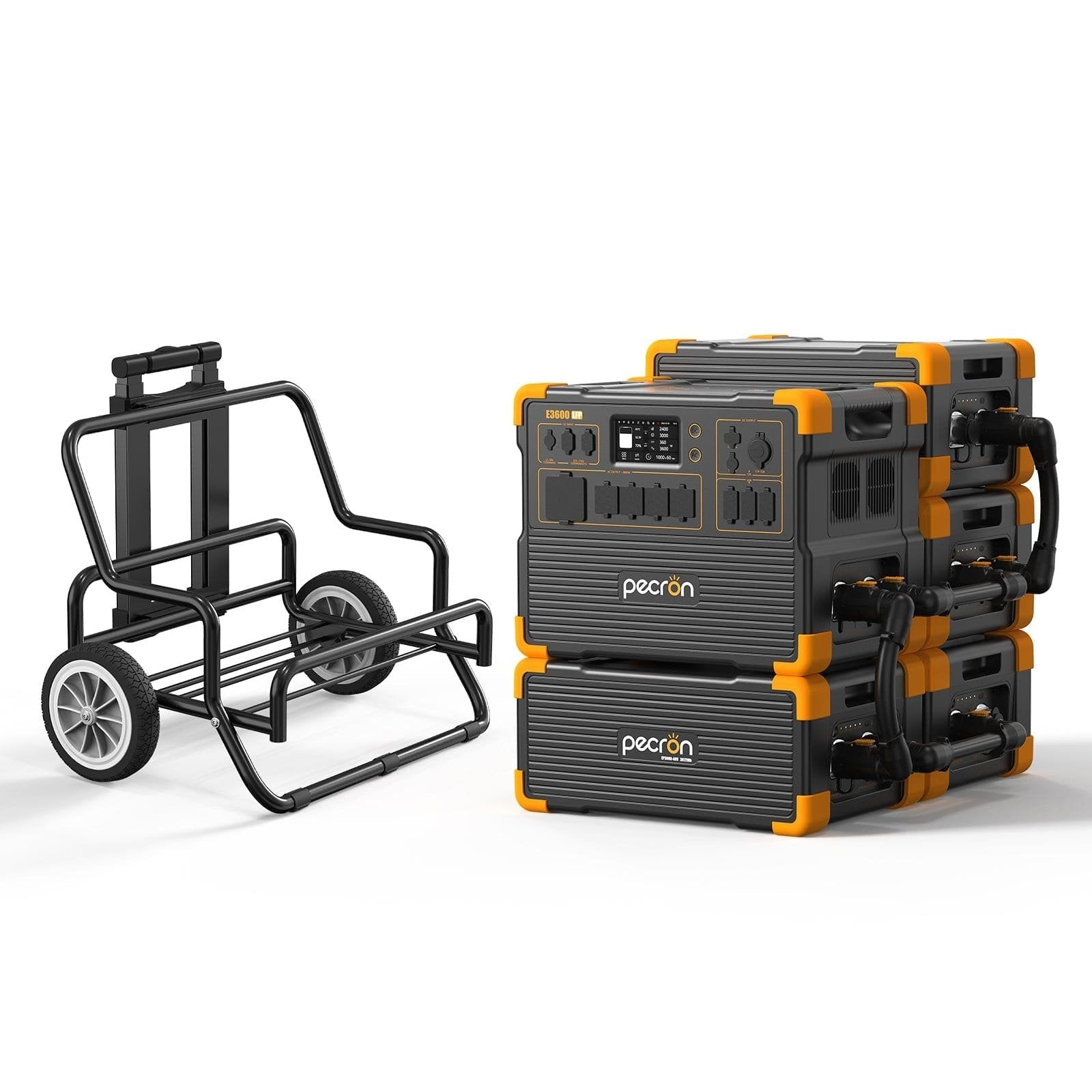

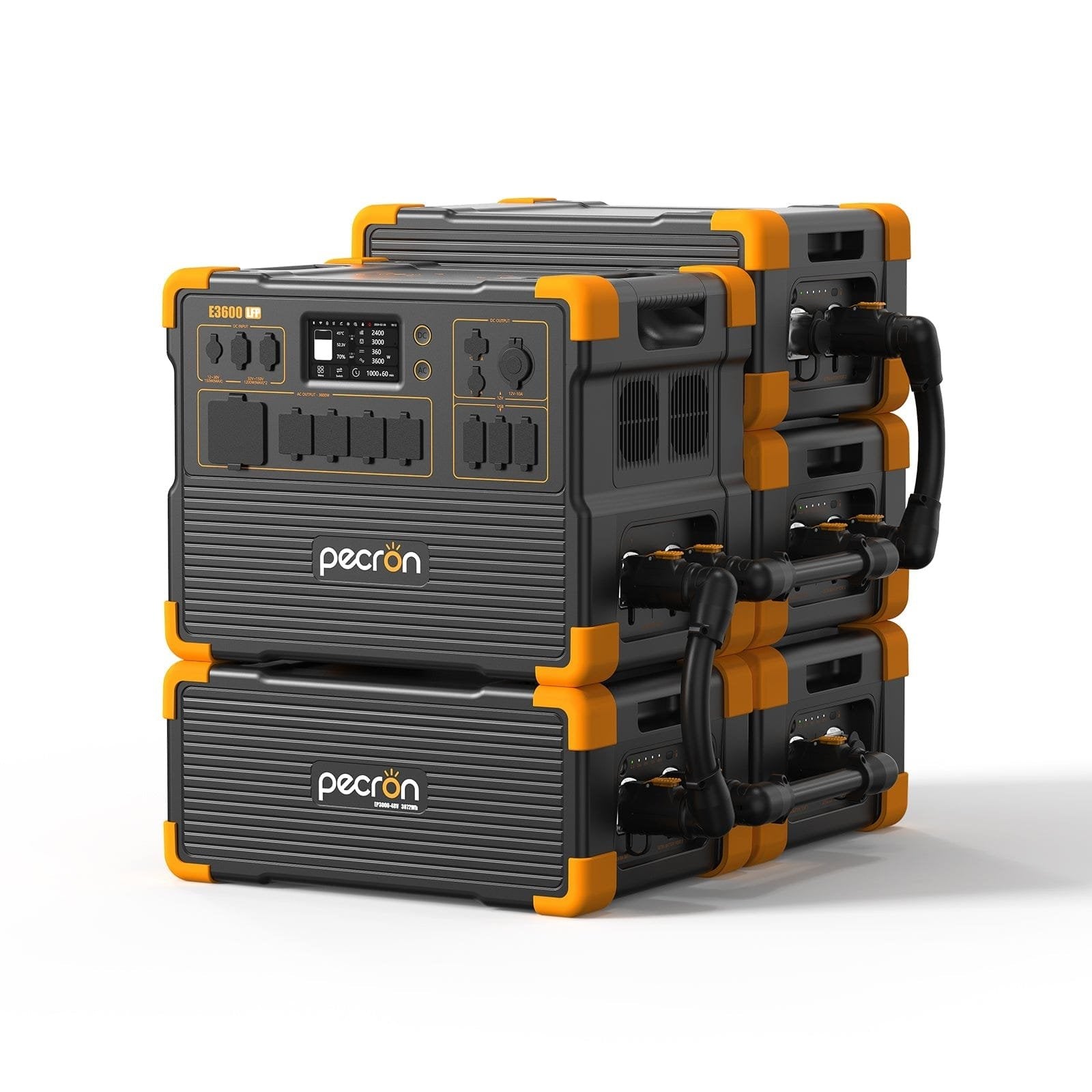

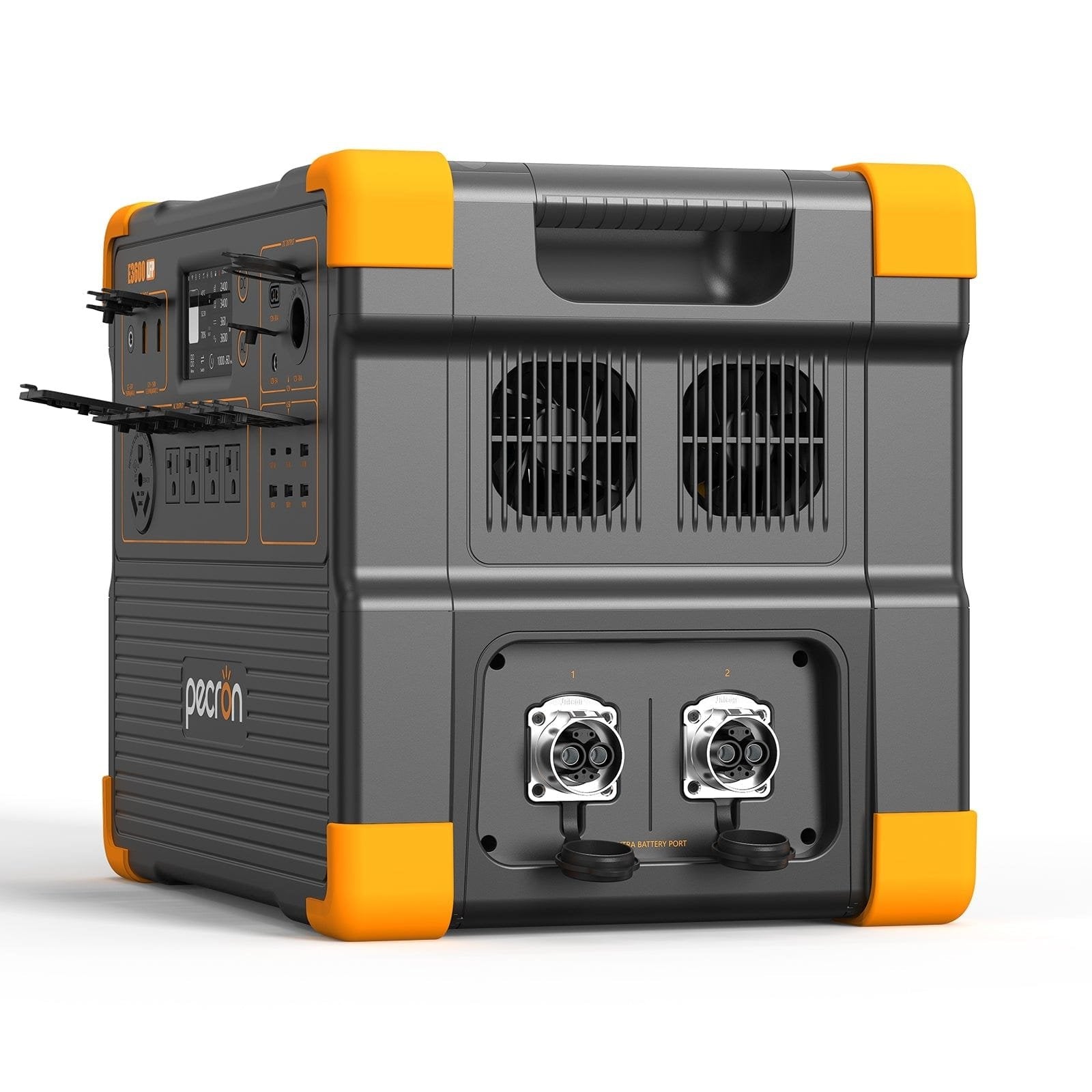

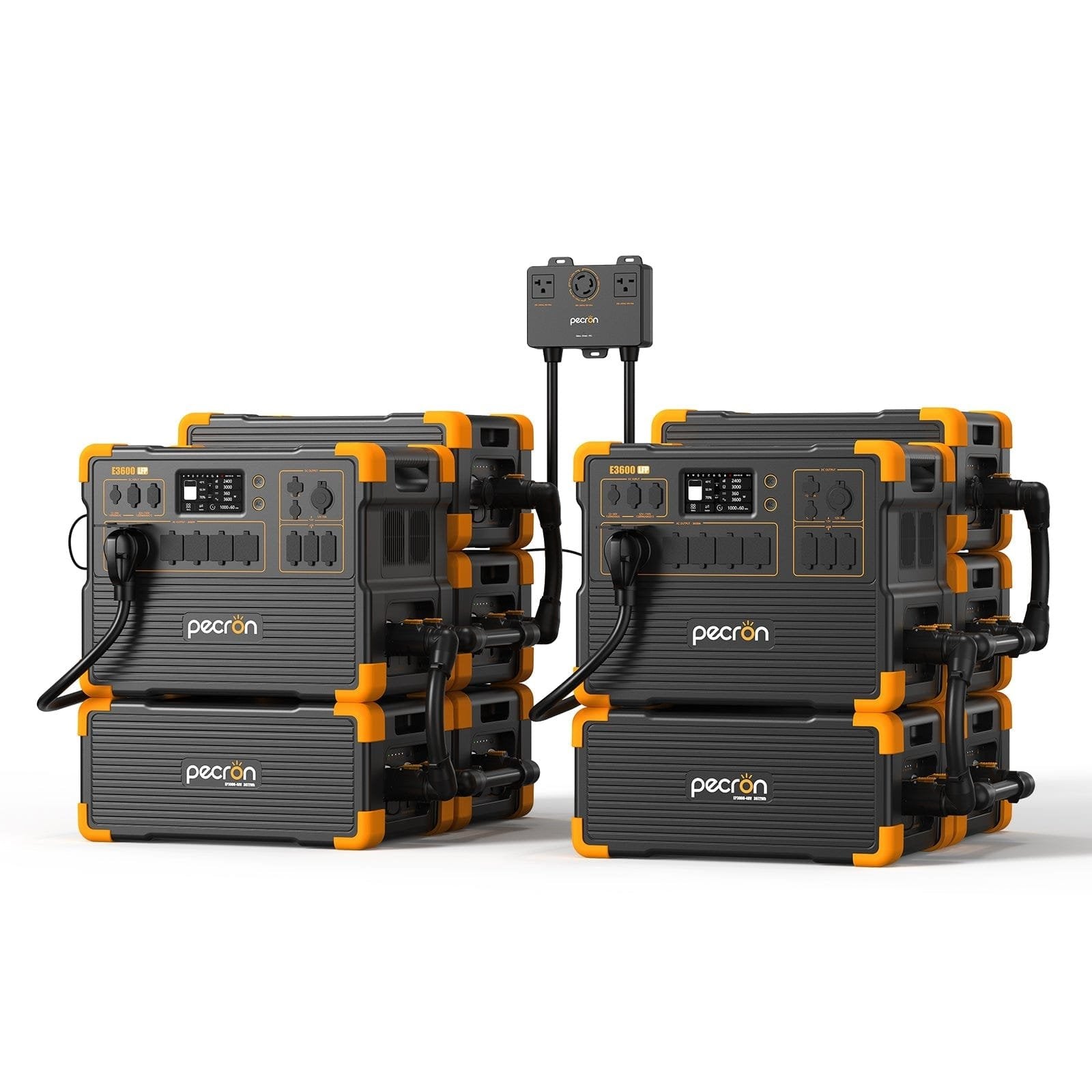

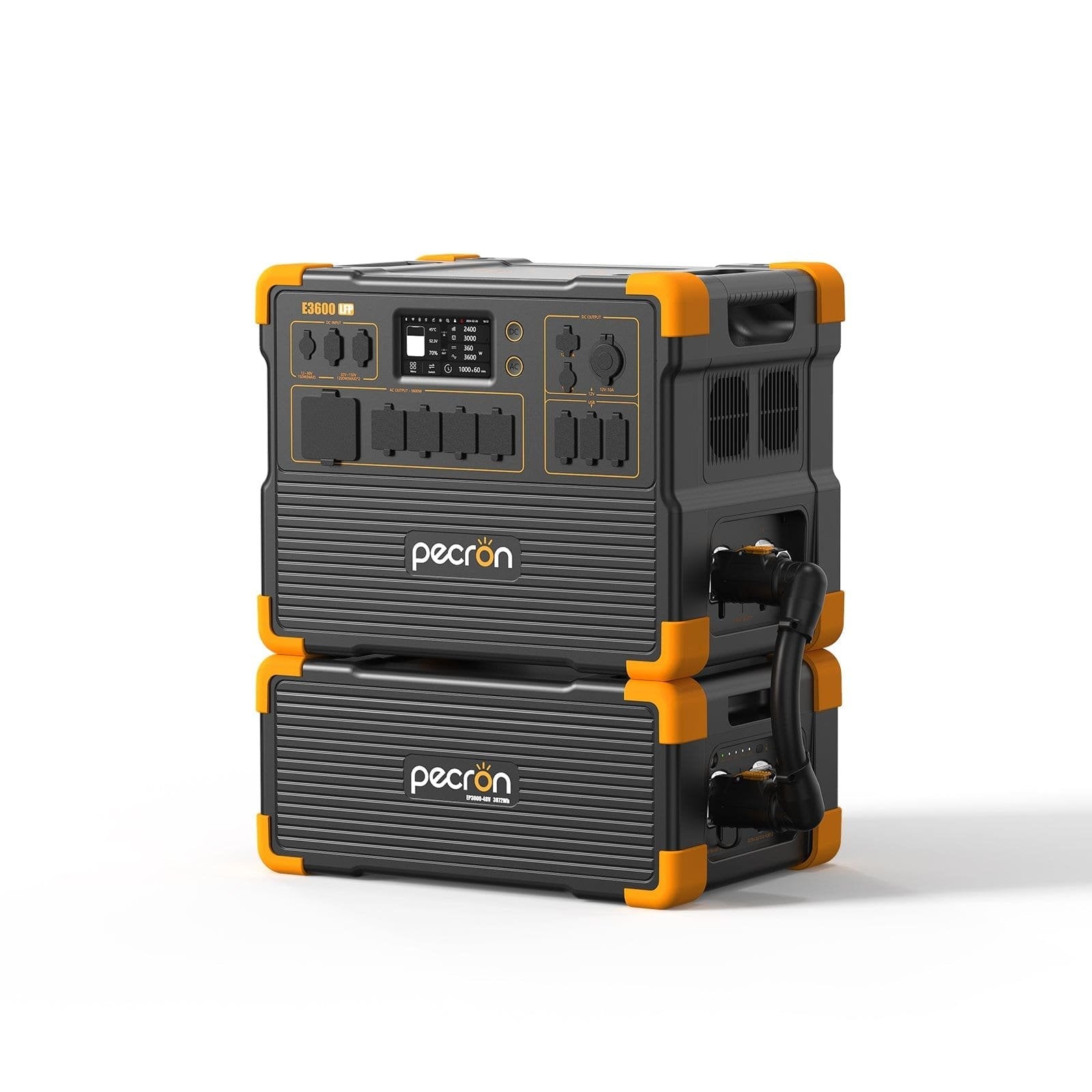

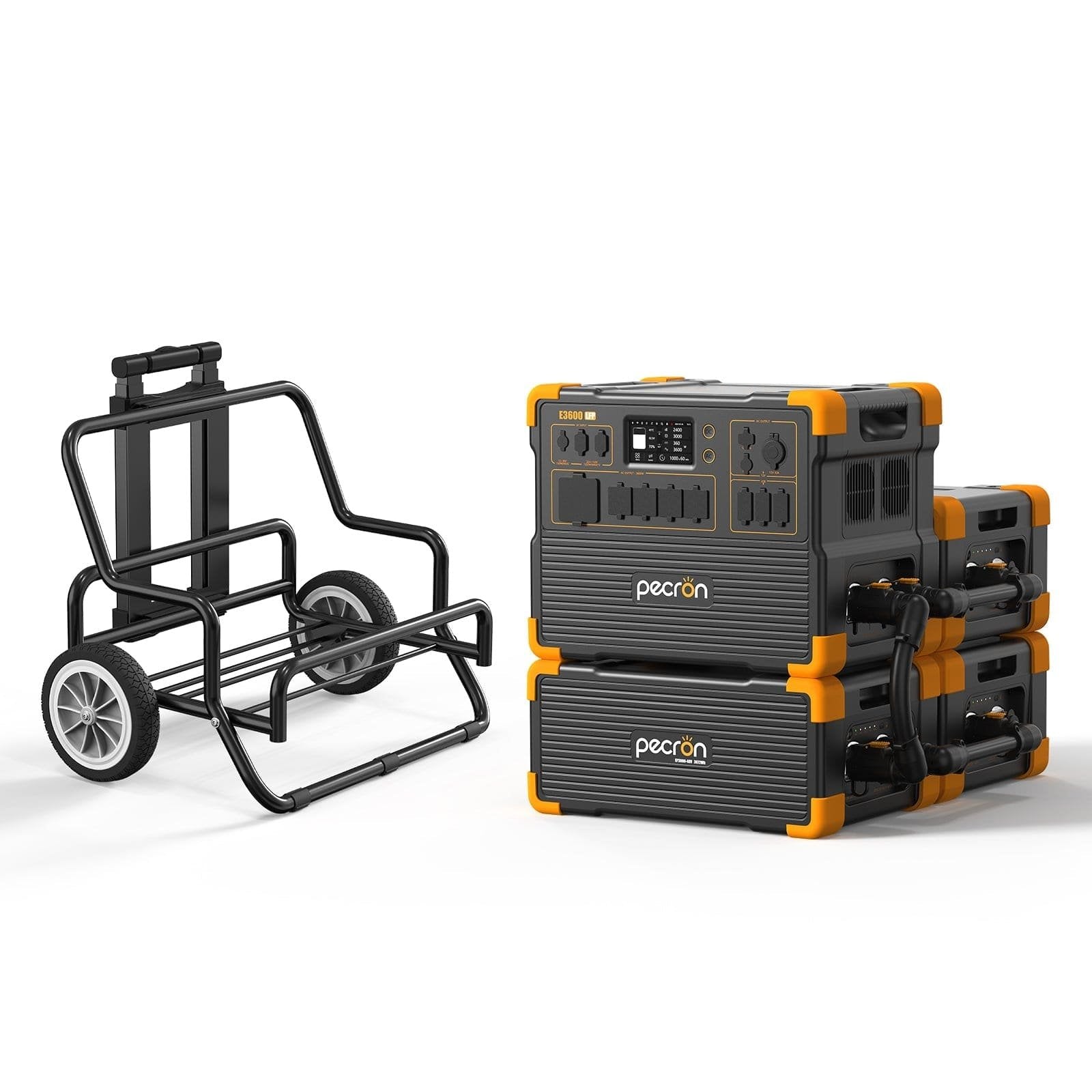

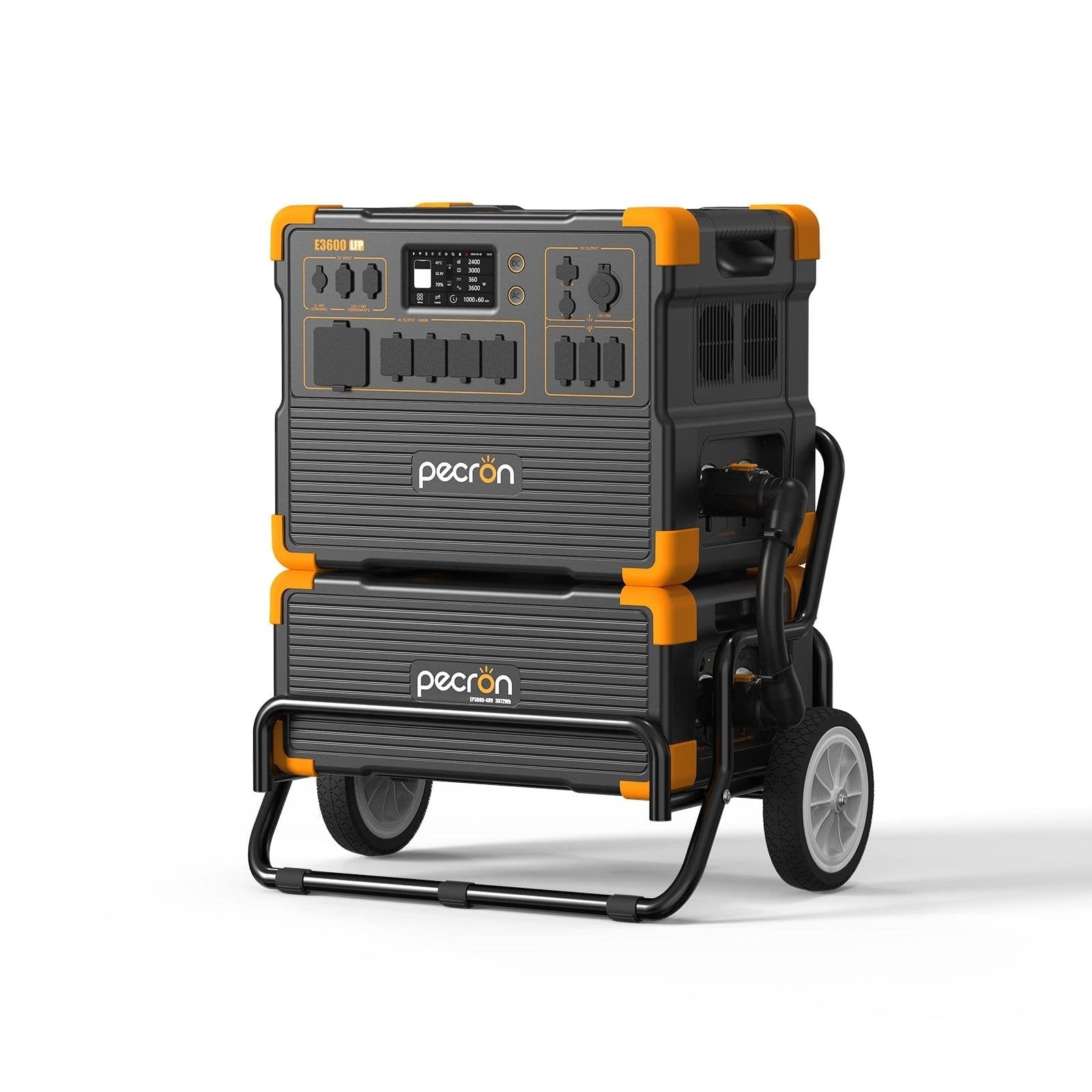

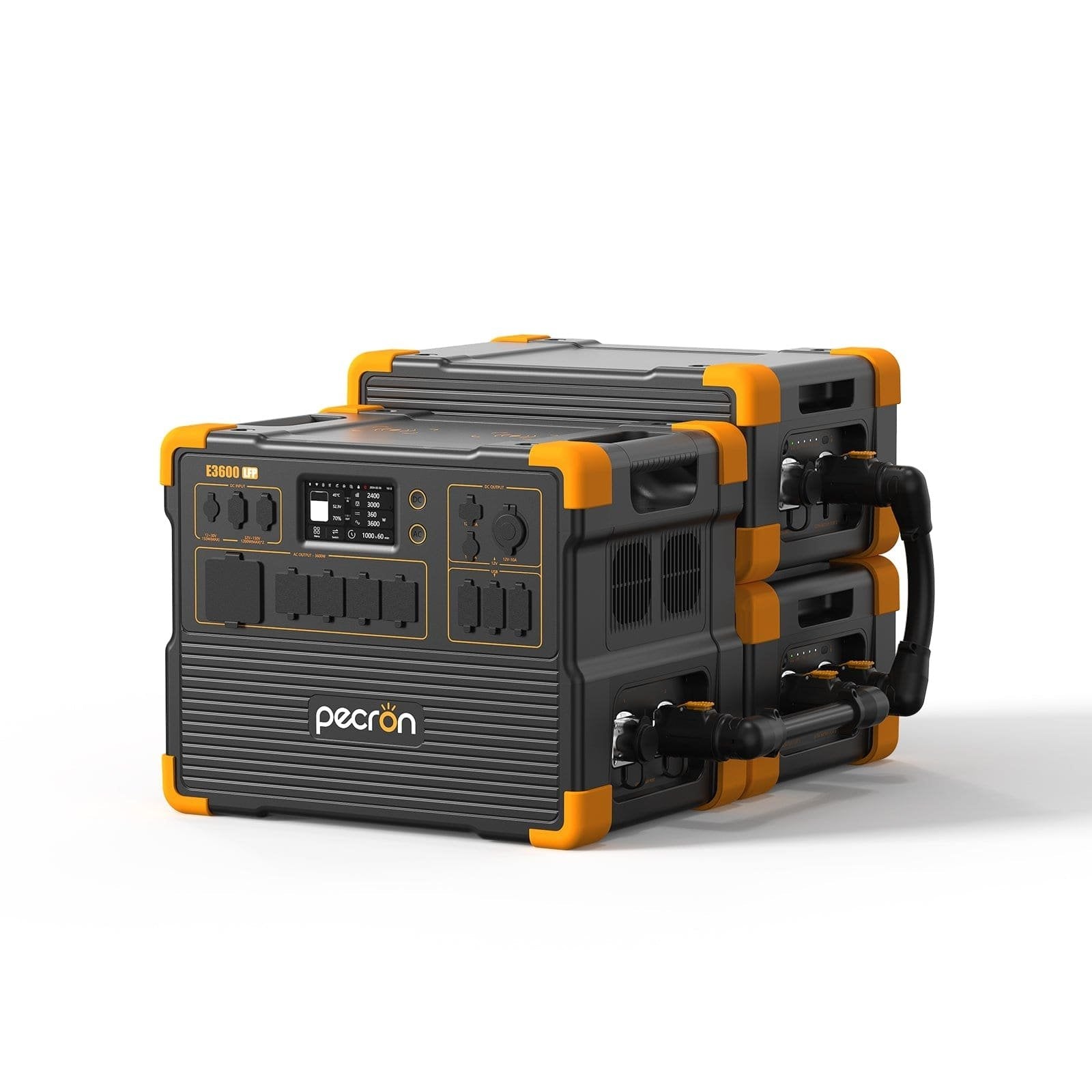

• 3072Wh battery capacity, expandable up to 15,360Wh with four EP3000-48V battery modules.

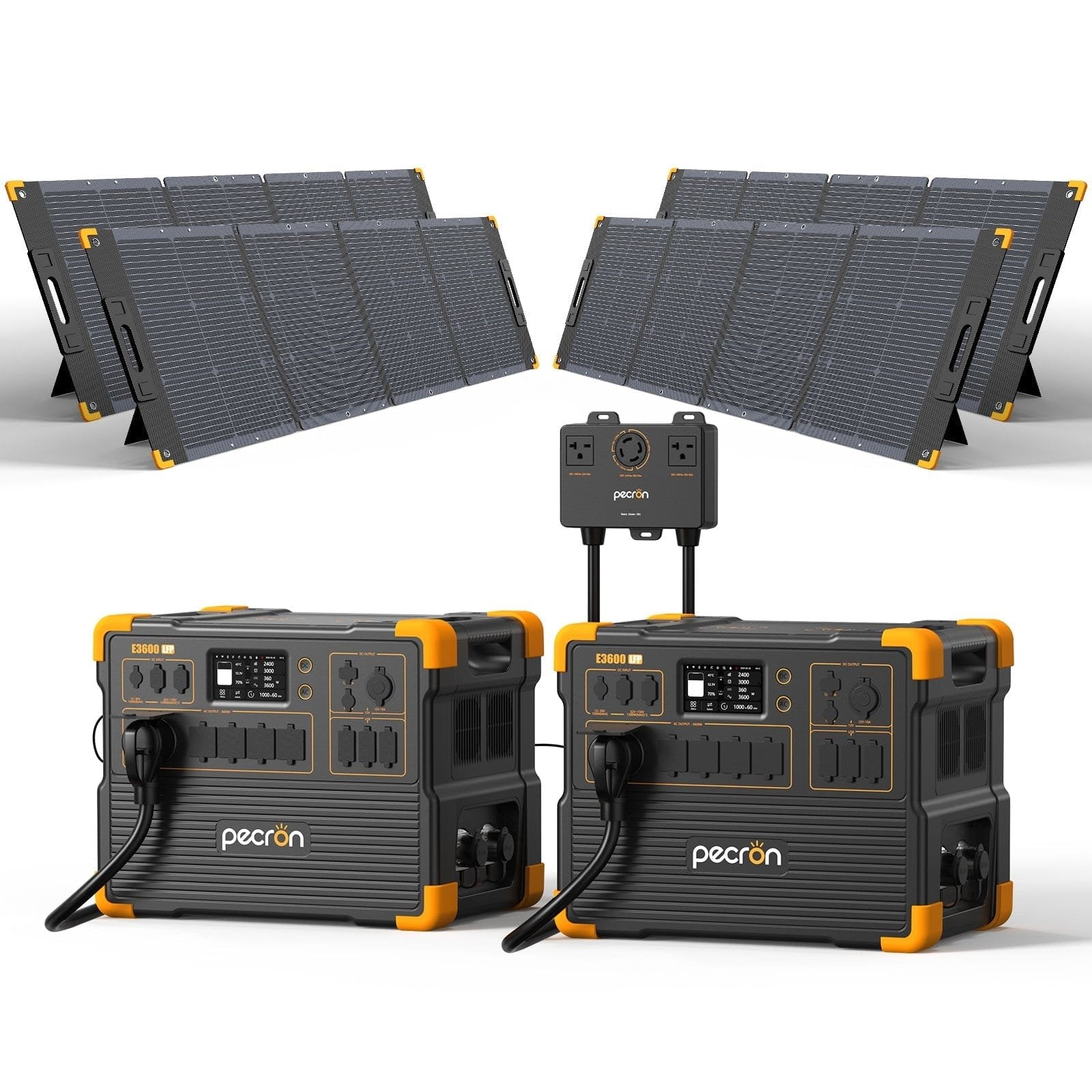

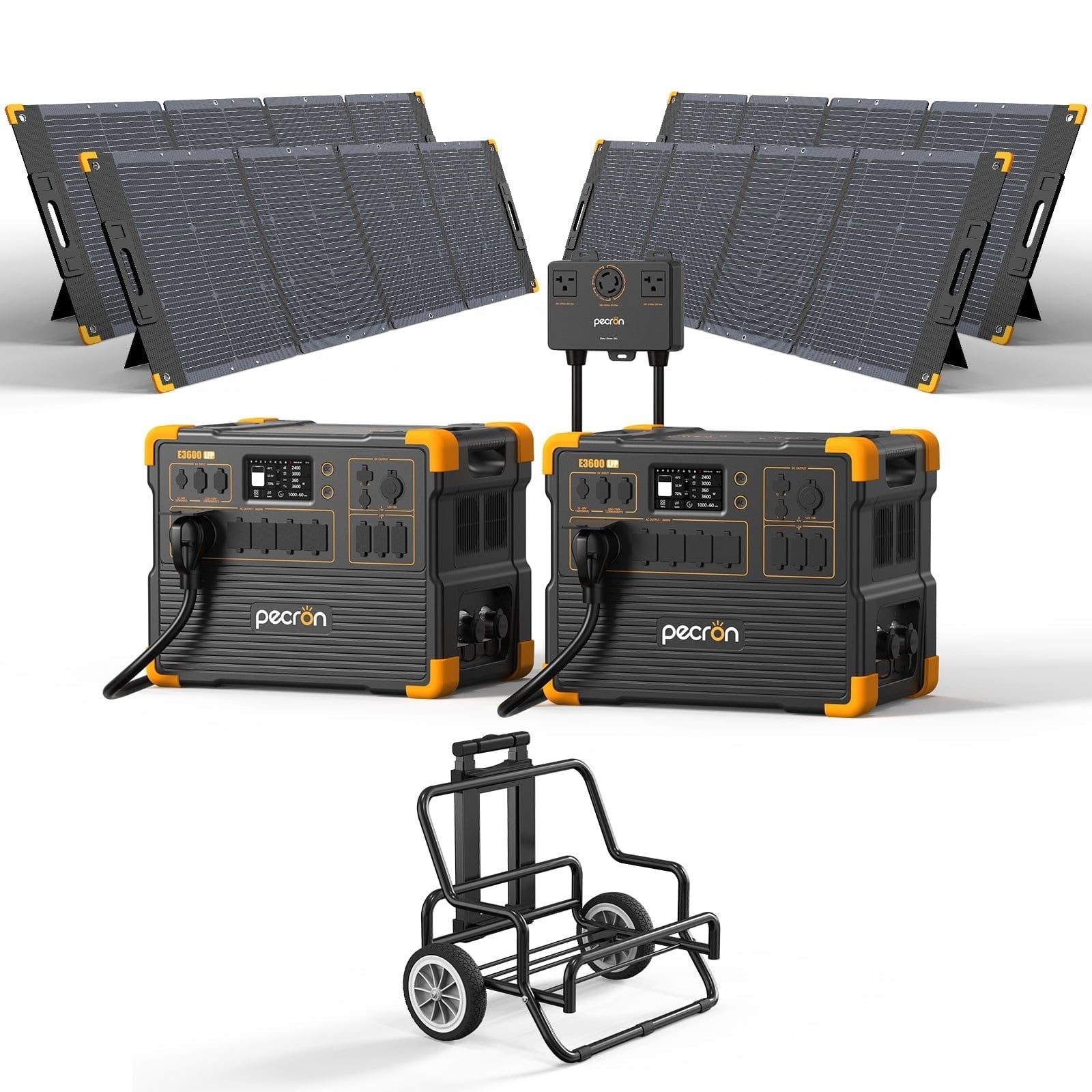

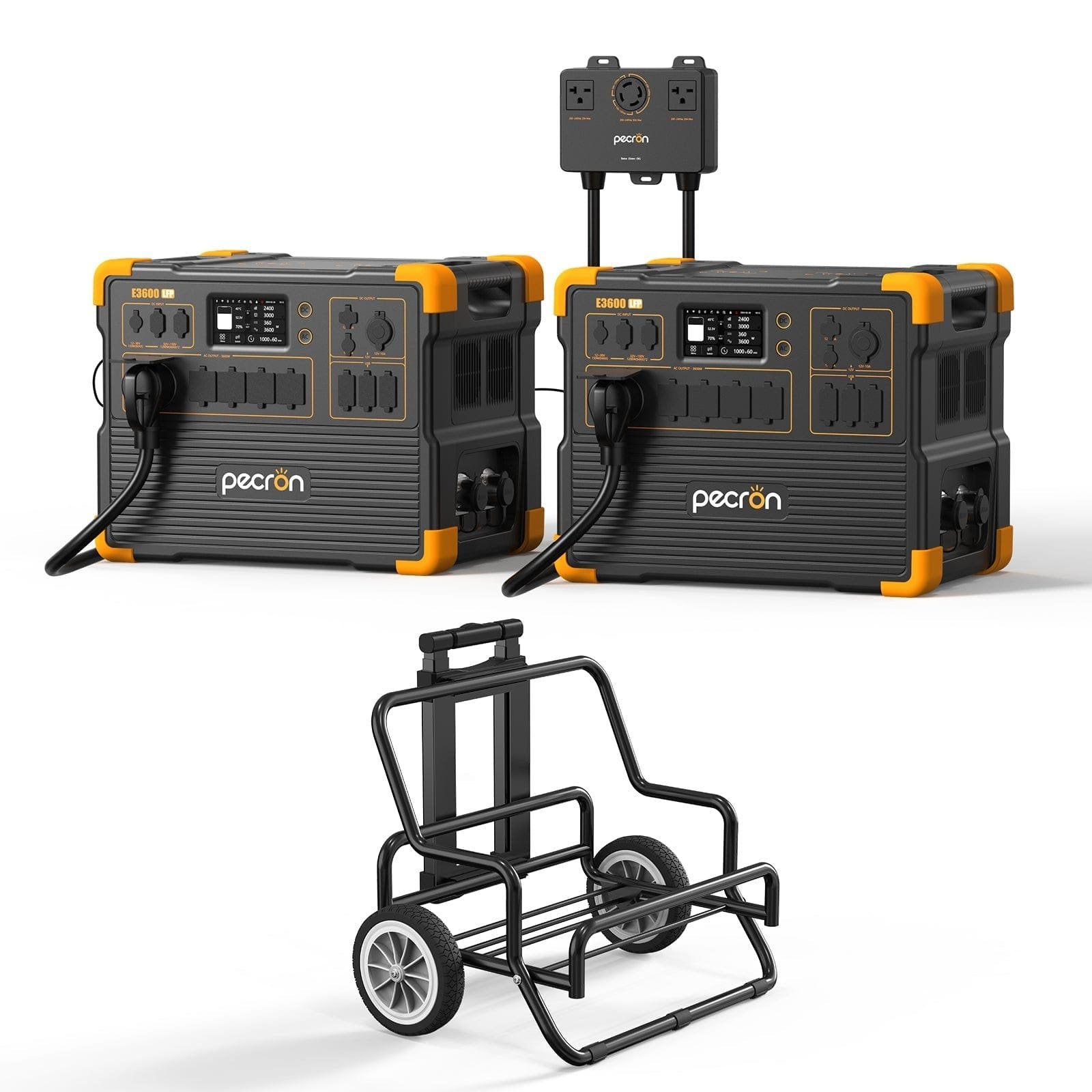

• 240V capability – Connect two E3600LFP units with a 240V series kit to deliver 7200W at 240V for large appliances.

Ultra-Fast & Flexible Charging

• 3200W AC charging (30A cable) – Full charge in 1.3 hours.
• 1800W AC charging (15A cable) – Full charge in 1.8 hours.

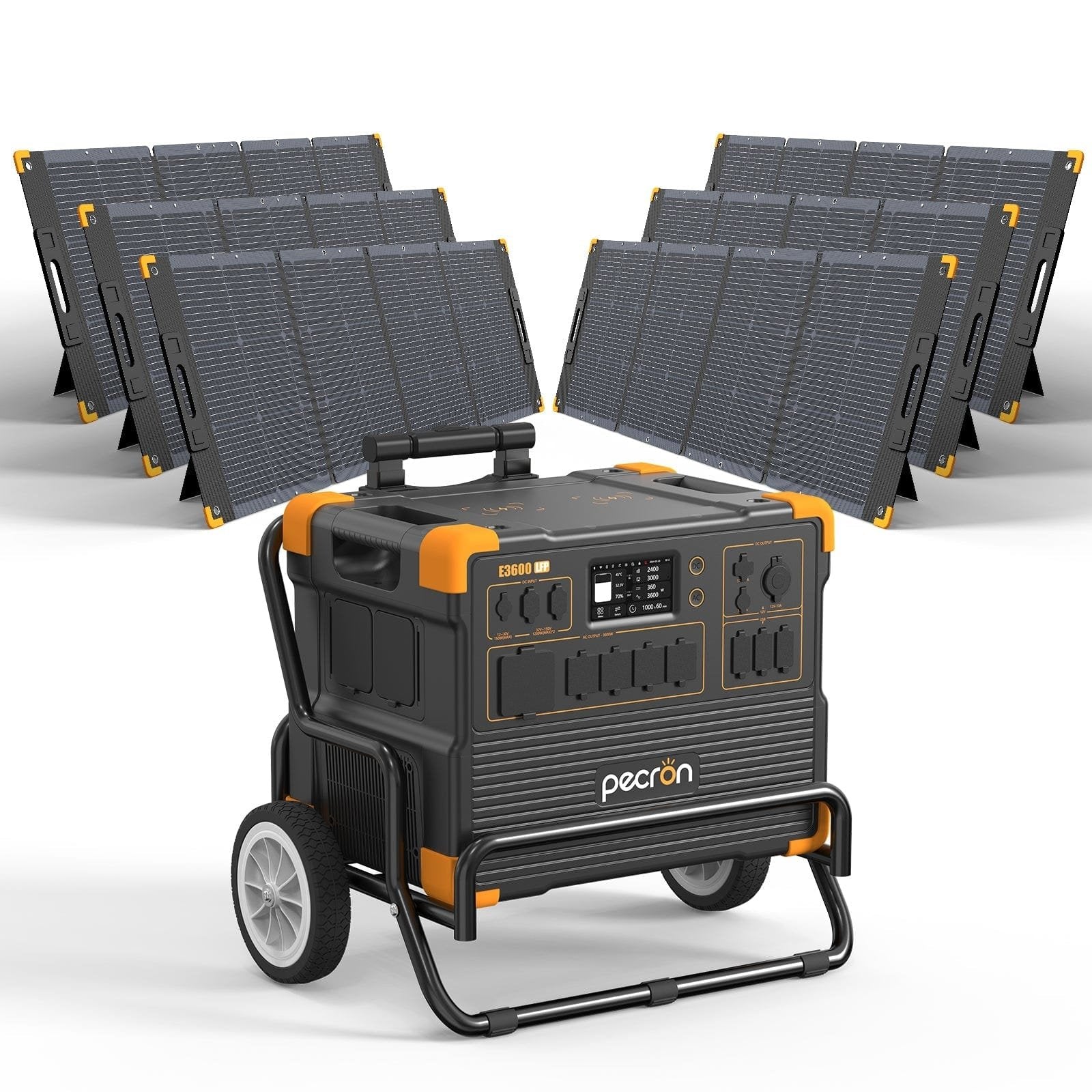

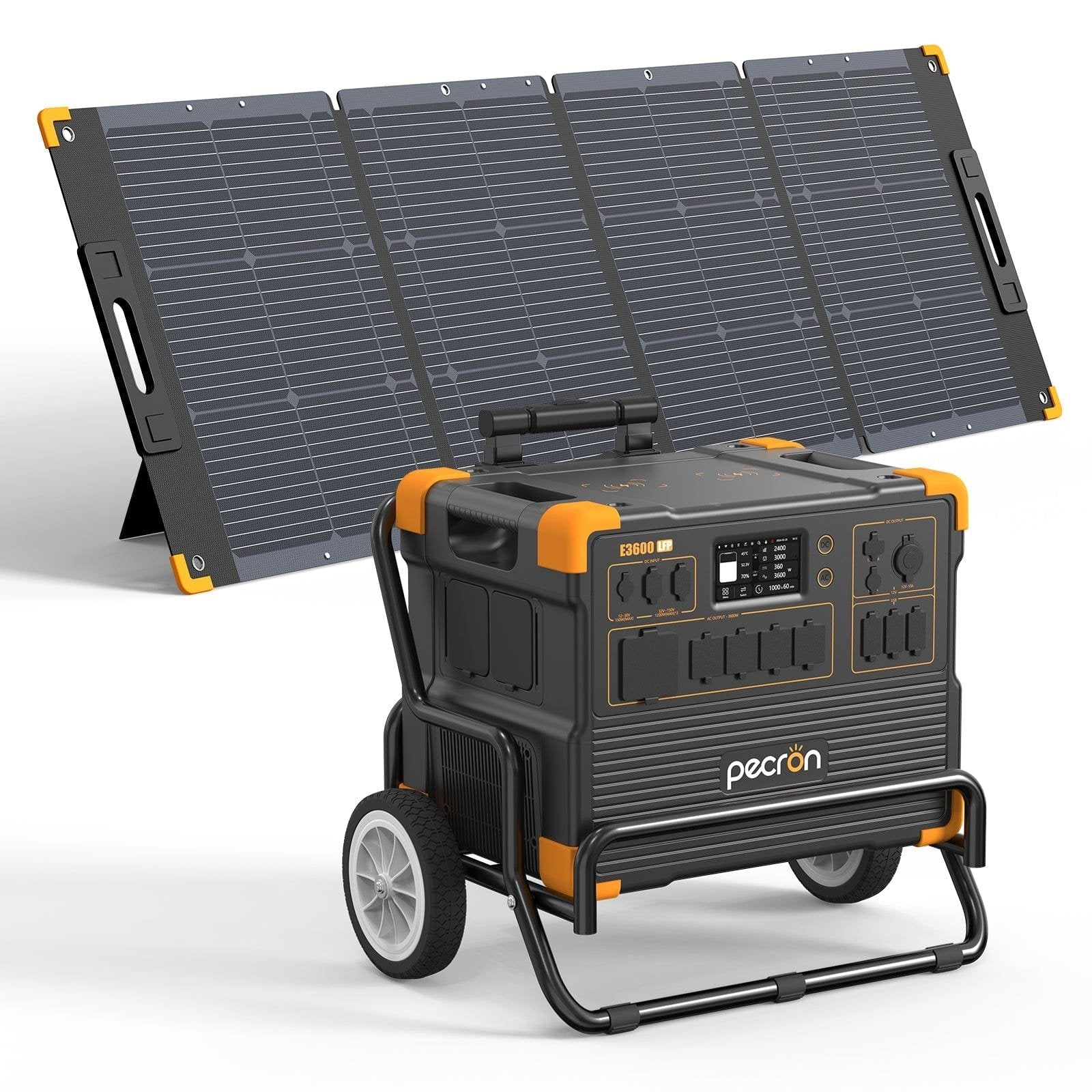

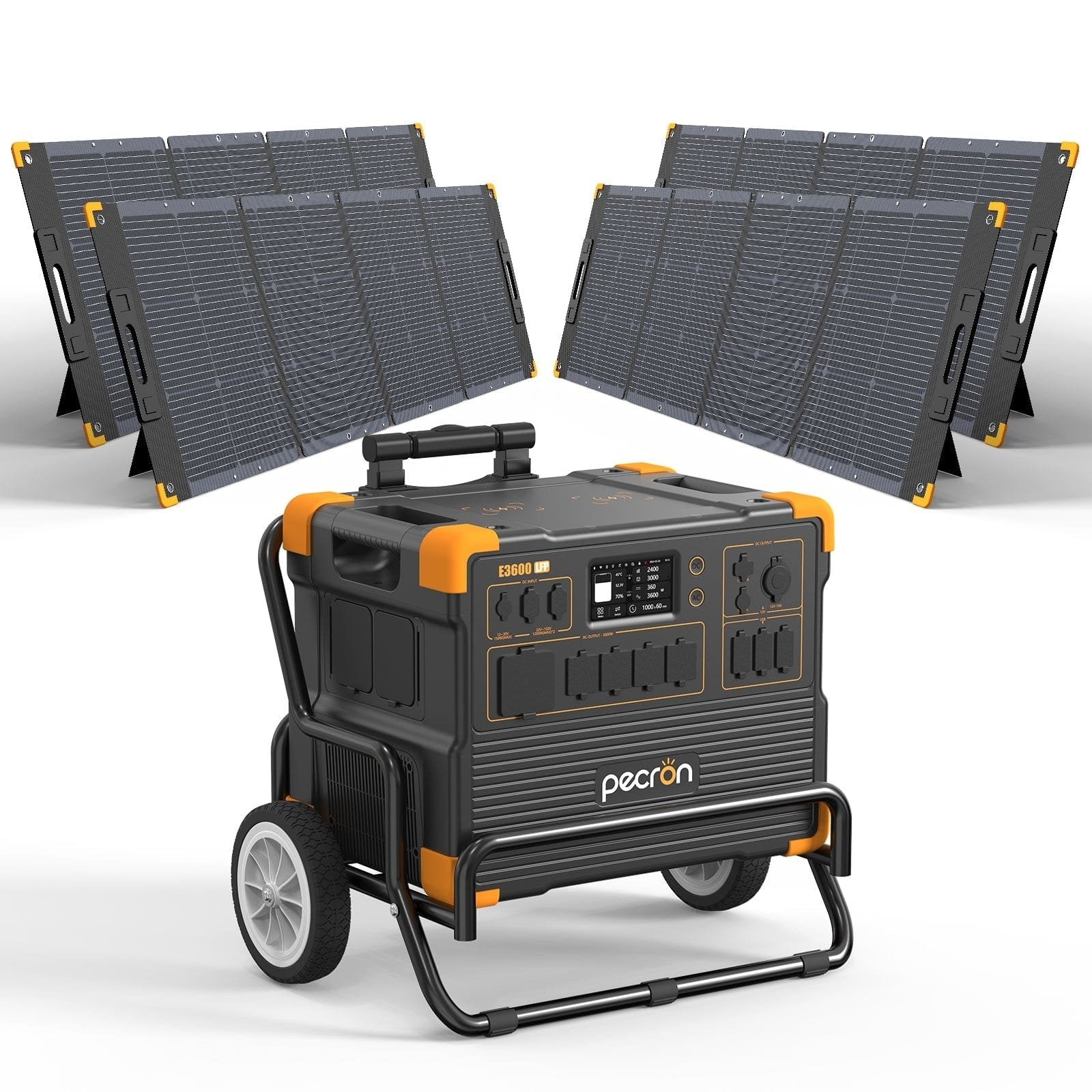

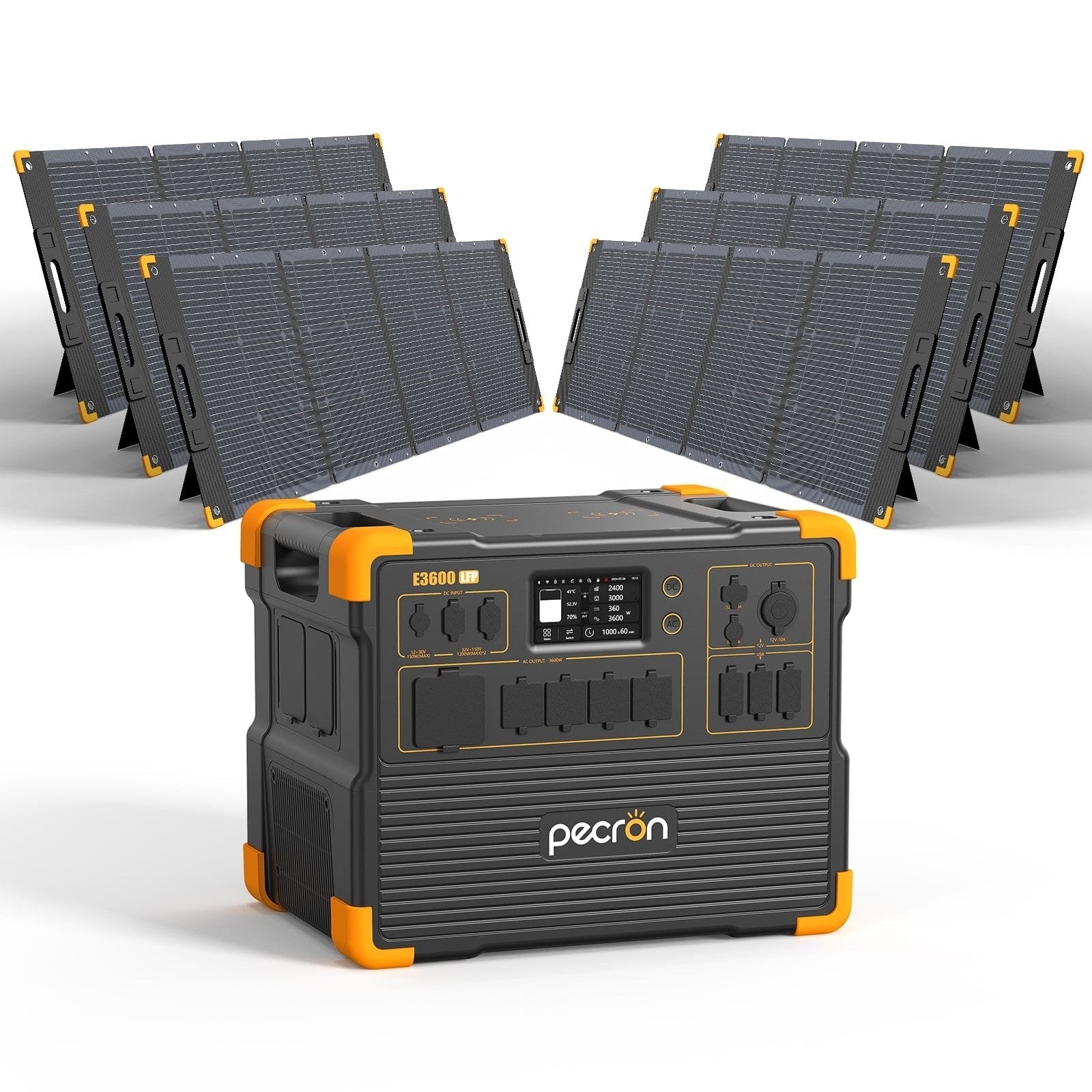

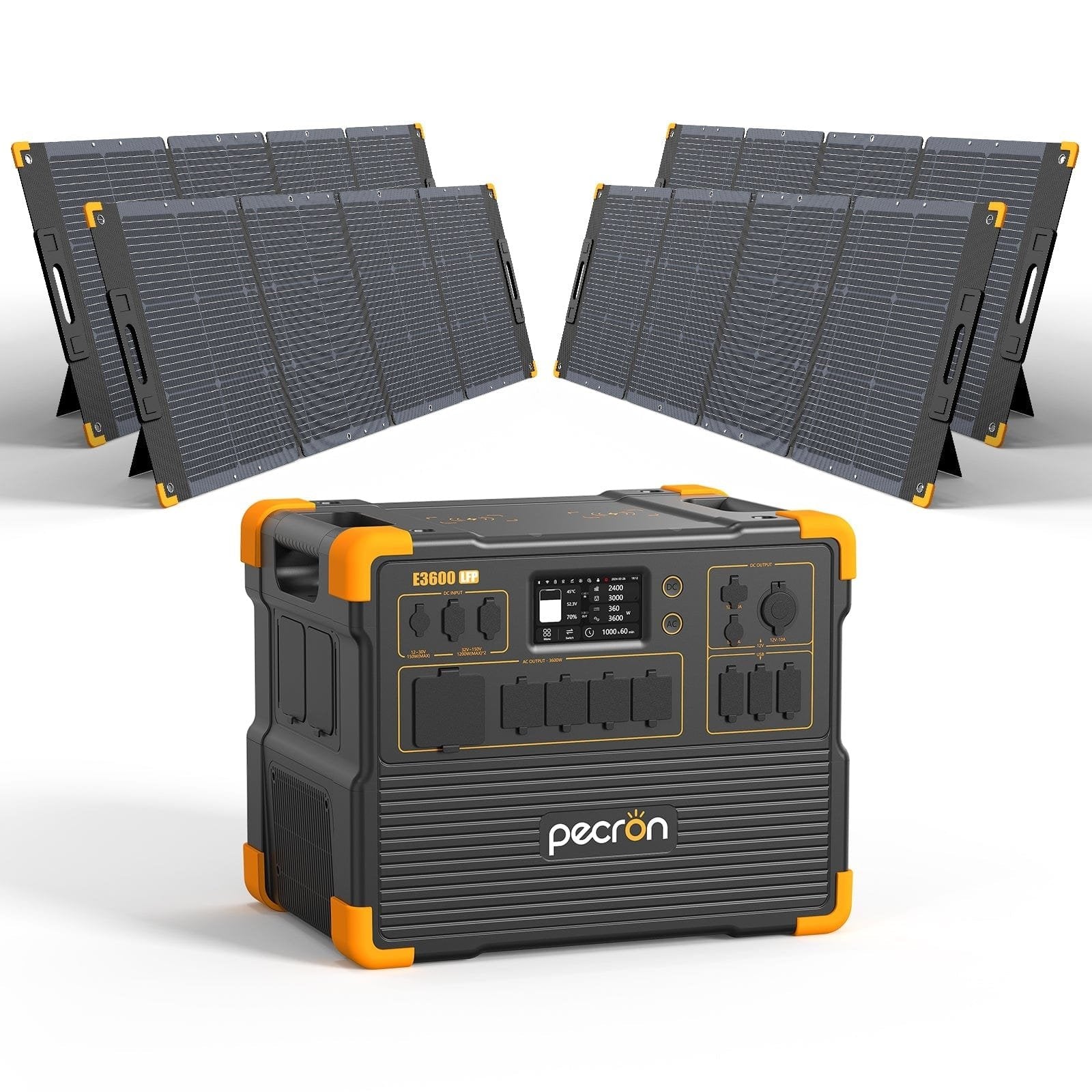

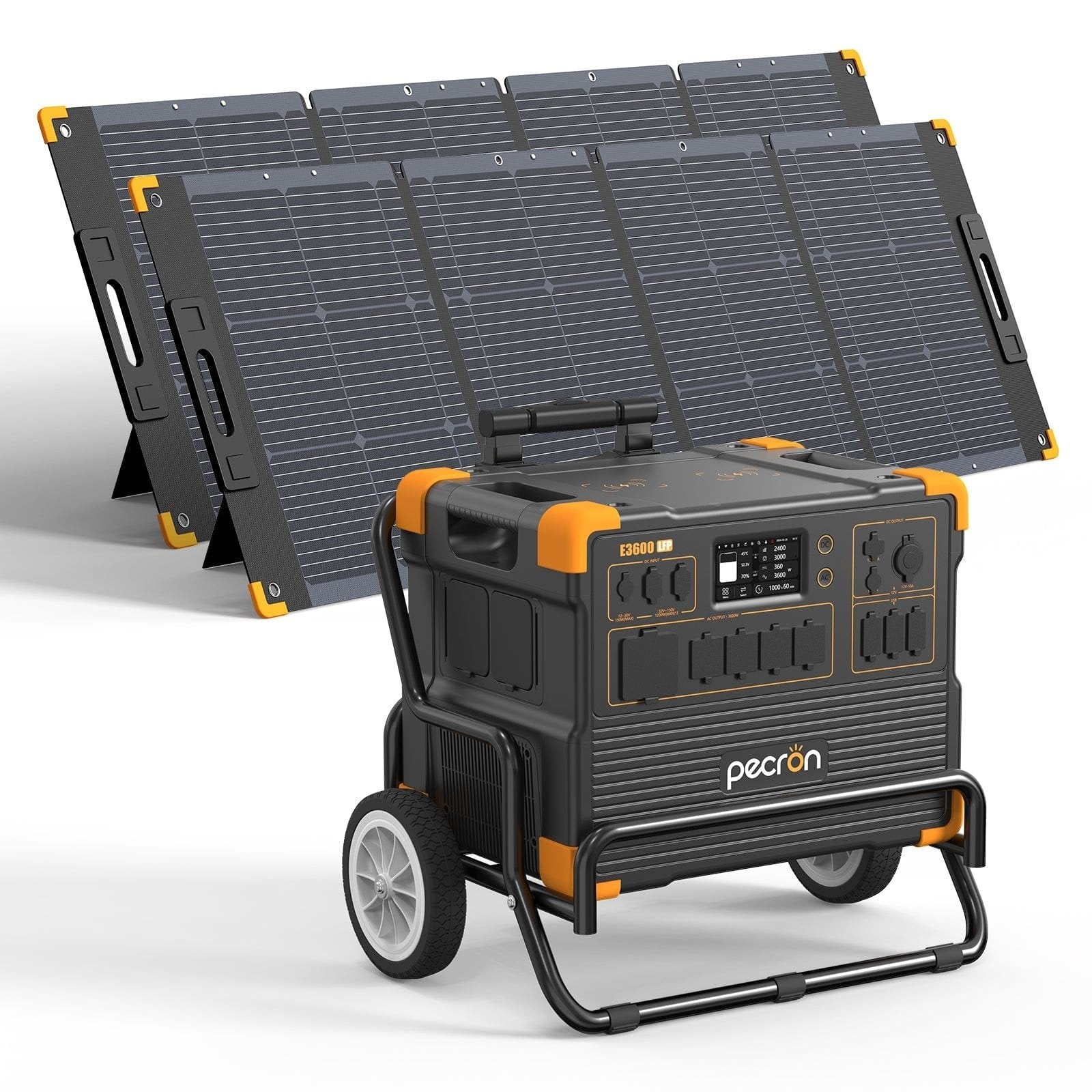

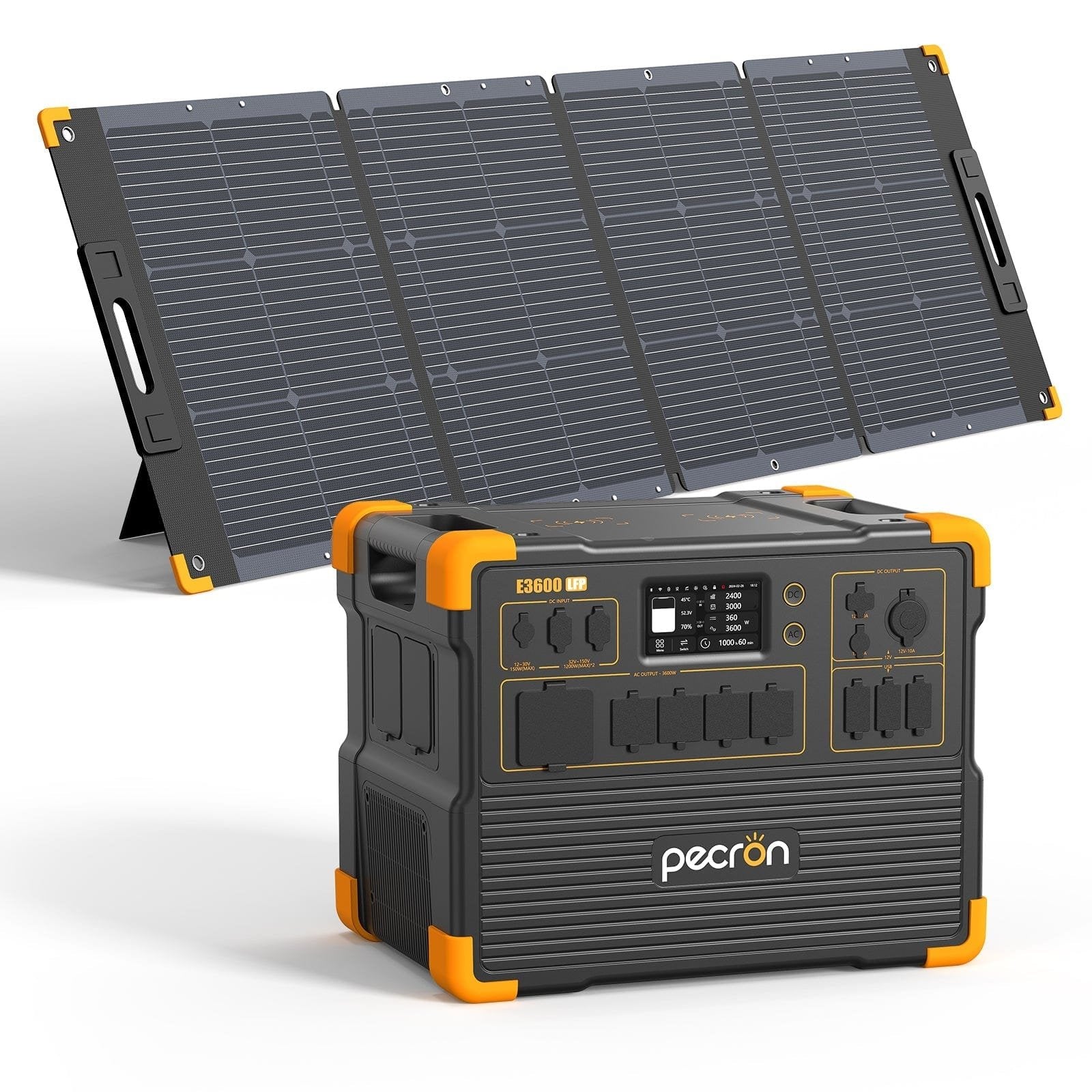

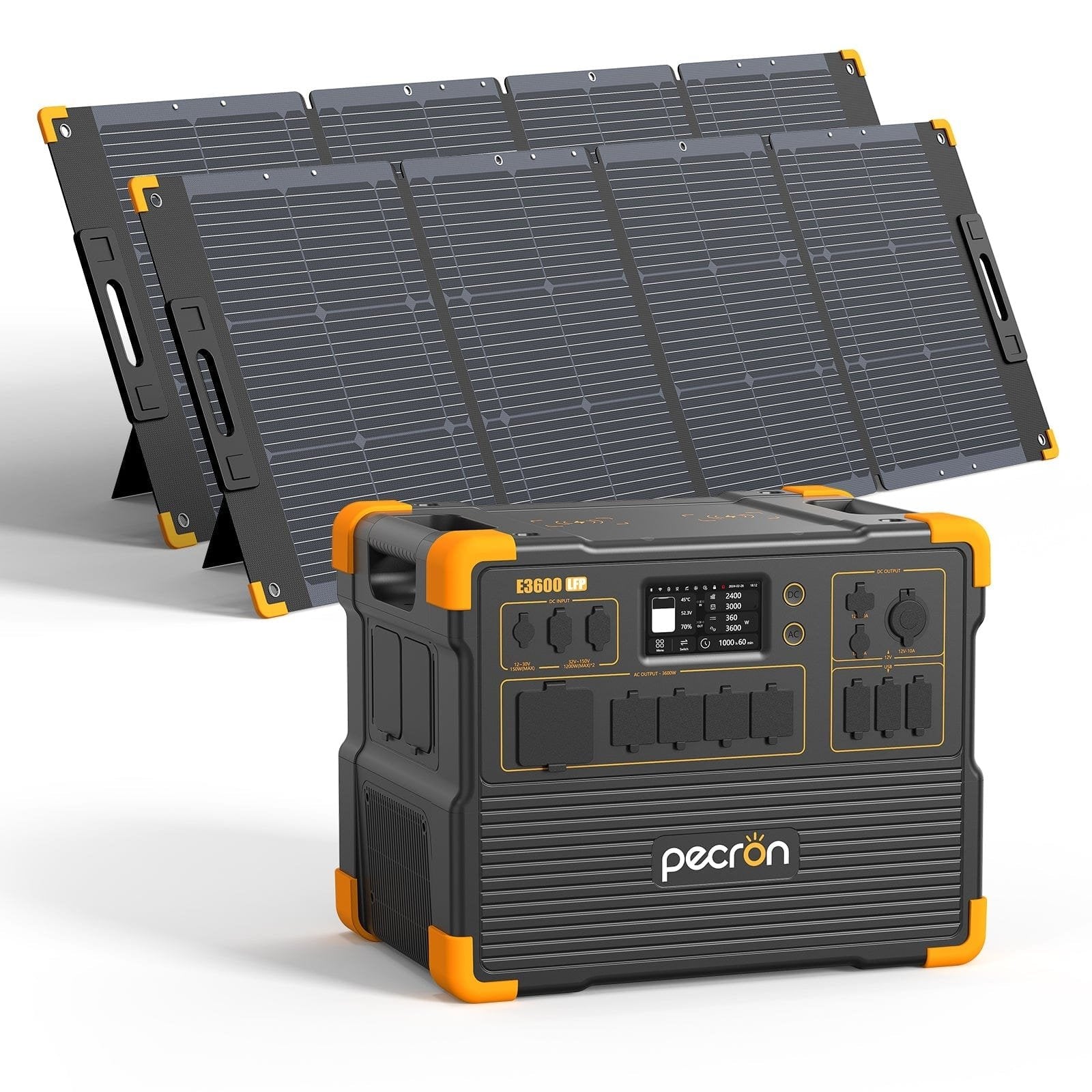

• 2400W max solar input via dual XT60 ports (2 x 1200W) for efficient solar charging.
• Multiple charging options: AC, solar, car, or hybrid charging.

Advanced LiFePO4 Battery Technology

• LiFePO4 battery with 3,500+ cycles to 80% capacity, ensuring long-term reliability.
• UPS functionality for automatic backup during power outages.
• Bidirectional charge flow for optimized energy management.

Smart Control & Connectivity

• Wi-Fi & Bluetooth app control for real-time monitoring and adjustments.
• XT60 30A (12V) output for high-powered DC applications.

Versatile Power Output

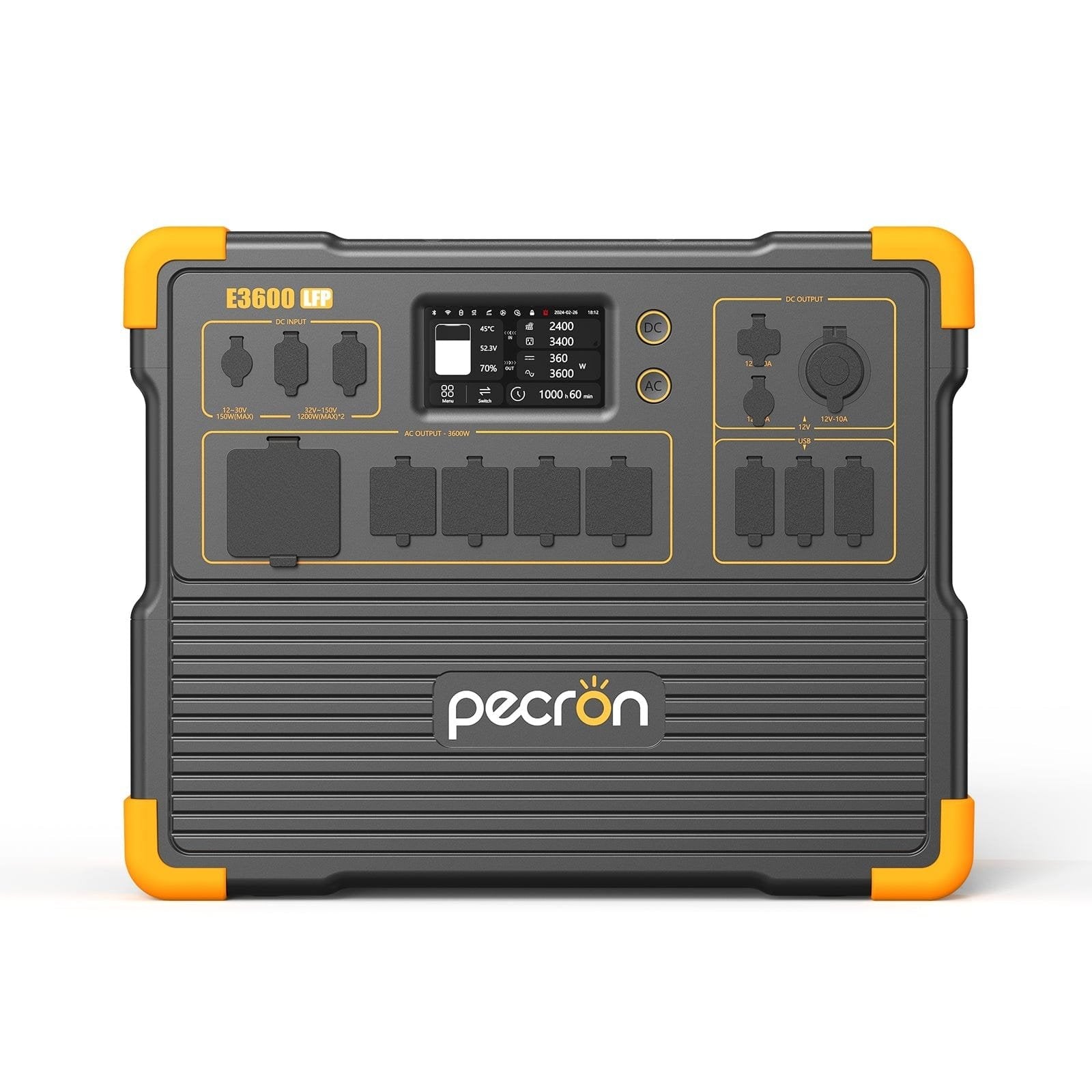

• 16 output ports to charge multiple devices at once.
• 5 AC outlets (30A output available) for powering household appliances.
• 15W wireless charging pad for convenient phone charging.
• PD 100W USB-C for high-speed laptop and tablet charging.

---

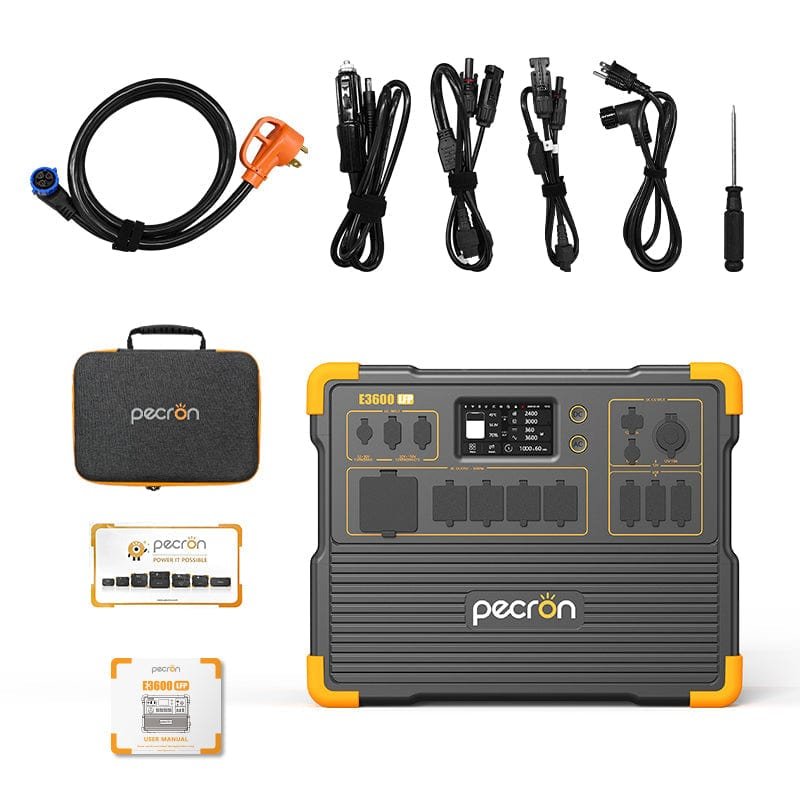

Package Includes

• PECRON E3600LFP Portable Power Station
• 15A AC Charging Cable
• Single Port XT60 to MC4 Solar Charging Cable
• Parallel Dual Port XT60 to MC4 Solar Charging Cable
• Slotted Screwdriver
• Accessory Pouch
• User Manual

---

Specifications

Model	E3600LFP
Rated Power	3600W
Peak Power	7000W
Capacity	3072Wh
Battery Type	LiFePO4
Weight	79 lbs (36 kg)
AC Output	100V~120V Pure Sine Wave
Solar Input	2×XT60: Voc 32V~150V / 1200W Max / 20A Max
Car Input	12V~30V / 150W Max / 7A Max
AC Input	100V~120V / 3200W (30A) or 1800W (15A)
Charging Time	1.3 Hours (30A AC) / 2 Hours (15A AC)
DC Output	30A (12V)
USB Ports	PD 100W USB-C, USB-A QC3.0 18W
Wireless Charger	15W Wireless Charging Pad
Smart App	Wi-Fi and Bluetooth control
Charge Temperature	0°C to 45°C (32°F to 113°F)
Discharge Temperature	-20°C to 45°C (-4°F to 113°F)
Dimensions	17.5 × 12.1 × 13.8 in

---

FAQs

What devices can I run on the E3600LFP?

The E3600LFP can power any device with a consumption of 3600W or less. However, devices with inductive loads (e.g., fridges, compressors, motors) may require 3-7 times their rated power to start.

How do I calculate how long the E3600LFP will power my devices?

Use the formula:
Total Capacity (Wh) × 85% ÷ Device Power Consumption (W)

Example:

• A 100W LED floodlight would run for approximately 26 hours.
• With four EP3000-48V batteries, it could run over 130 hours continuously.

Does the E3600LFP have built-in MPPT charge controllers?

Yes, it features three independent MPPT charge controllers, significantly improving charging efficiency and effectiveness.

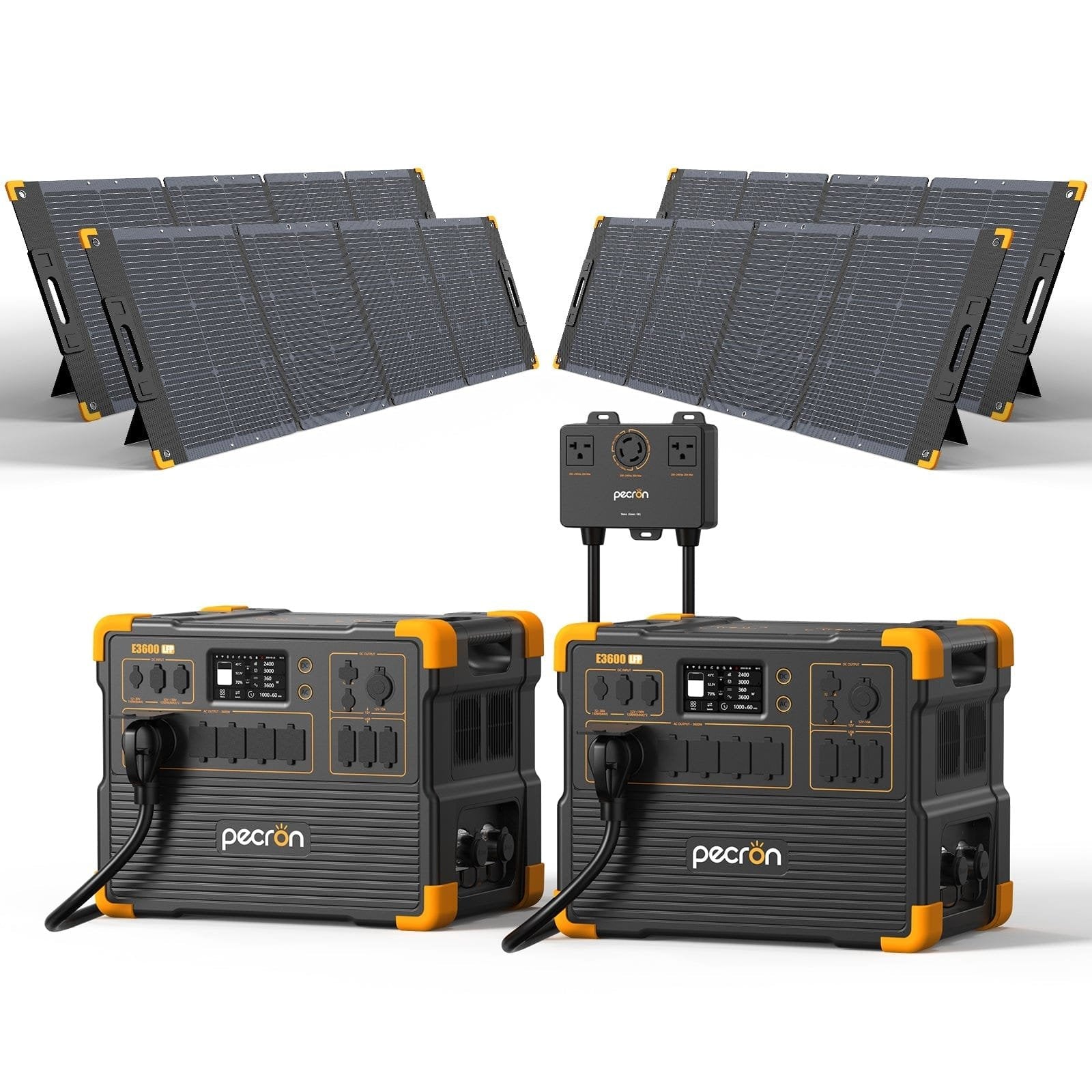

How can I maximize the 2400W solar input?

To fully utilize 2400W solar input, you can:

1. Connect two 1200W solar arrays to each XT60 input port.
2. Use Pecron solar panels or compatible third-party panels within 32V-150V range.

Can I use third-party solar panels with the E3600LFP?

Yes, as long as your solar panels fall within these voltage ranges:

• 32V~150V (1200W Max per XT60 port)

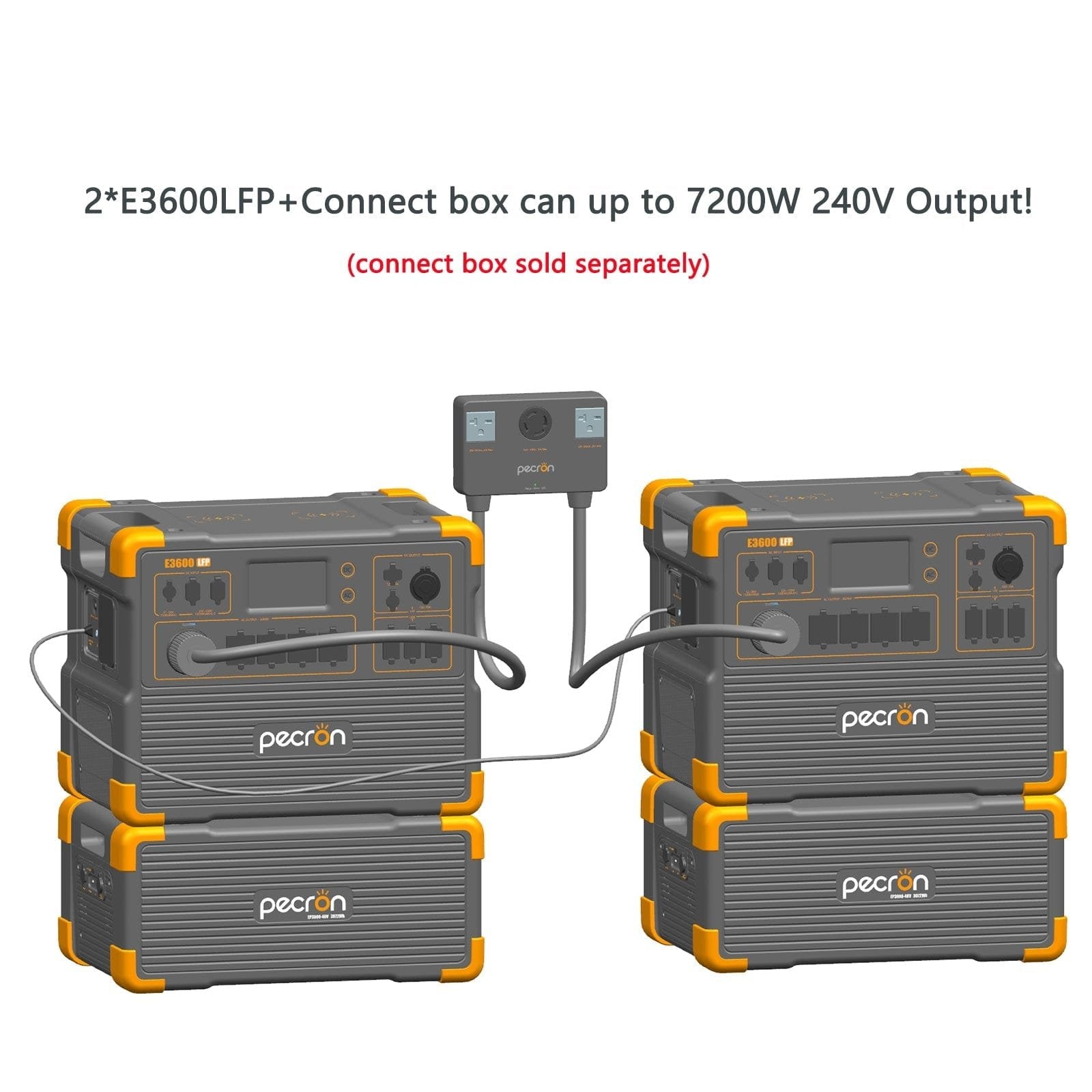

How do I enable 240V output?

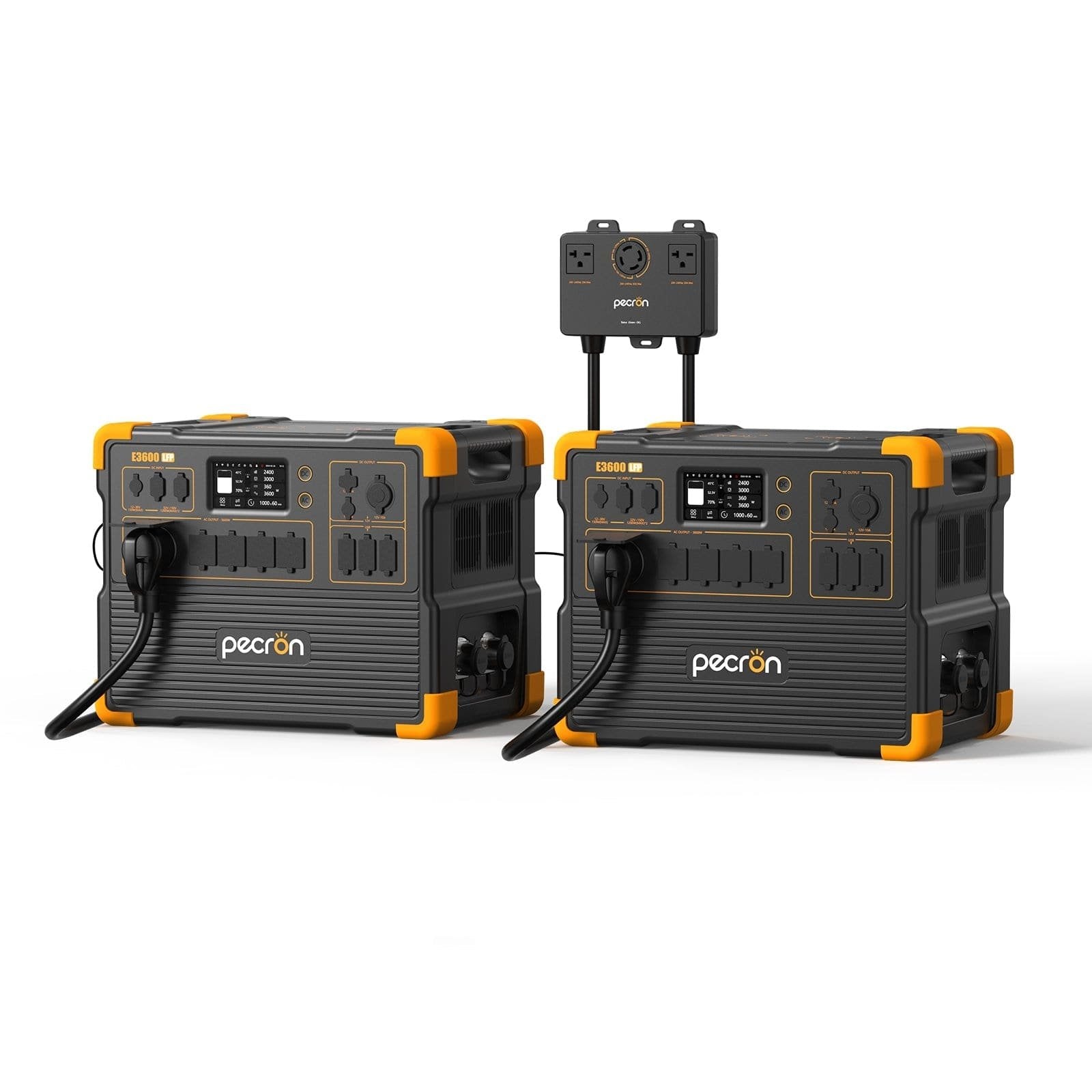

To enable 240V output at 7200W, connect two E3600LFP units using the 240V series connection kit (sold separately).

---

The PECRON E3600LFP is the ultimate high-capacity, fast-charging power station designed for home backup, professional use, off-grid setups, and high-power appliances. Its expandable capacity, rapid charging, and smart control features make it a top choice for serious energy users.
